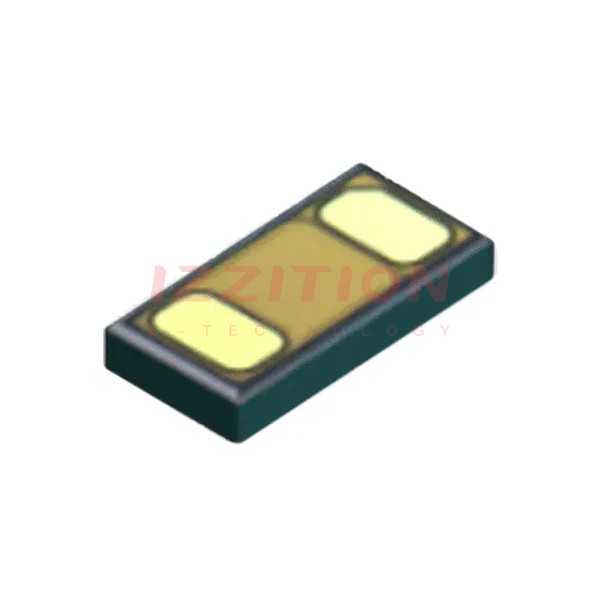

| Part Number | DY2L5A0C0L1 | DY2L3A0C0L1 | DY2L4A0C0L1 |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) | 3V (Max) | 4V (Max) |
| Voltage - Breakdown (Min) | 7V | 5.39V | 6.42V |
| Voltage - Clamping (Max) @ Ipp | 13V | 10V | 12V |
| Current - Peak Pulse (10/1000µs) | 1.8A (8/20µs) | 2.6A (8/20µs) | 2.1A (8/20µs) |
| Power - Peak Pulse | 20W | 23W | 21W |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 6pF @ 1MHz | 8.5pF @ 1MHz | 6.5pF @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
