Please send RFQ , we will respond immediately.

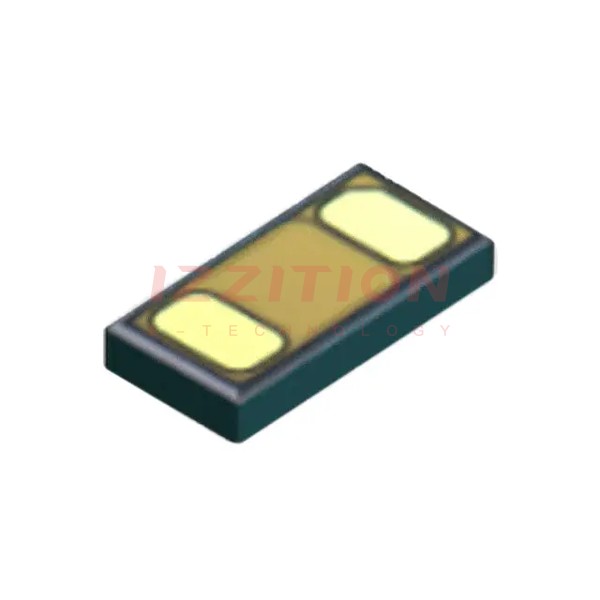

| Part Number | DY2L3A3C0L1 | DY2L3A0C0L1 |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Type | Zener | Zener |
| Unidirectional Channels | - | - |
| Bidirectional Channels | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) | 3V (Max) |
| Voltage - Breakdown (Min) | 5.86V | 5.39V |
| Voltage - Clamping (Max) @ Ipp | 11V | 10V |
| Current - Peak Pulse (10/1000µs) | 2.4A (8/20µs) | 2.6A (8/20µs) |
| Power - Peak Pulse | 22W | 23W |
| Power Line Protection | No | No |
| Applications | General Purpose | General Purpose |
| Capacitance @ Frequency | 7.5pF @ 1MHz | 8.5pF @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) | 0201 (0603 Metric) |
