Panasonic Electronic Components-DSCQ00100L - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	DSCQ00100L	DSC200100L	DSC300100L	DSC500100L	DSC900100L
Manufacturer	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components
Product Status	Obsolete	Discontinued at Digi-Key	Discontinued at Digi-Key	Discontinued at Digi-Key	Discontinued at Digi-Key
Transistor Type	NPN	NPN	NPN	NPN	NPN
Current - Collector (Ic) (Max)	100 mA	100 mA	100 mA	100 mA	100 mA
Voltage - Collector Emitter Breakdown (Max)	50 V	50 V	50 V	50 V	50 V
Vce Saturation (Max) @ Ib, Ic	300mV @ 10mA, 100mA	300mV @ 10mA, 100mA	300mV @ 10mA, 100mA	300mV @ 10mA, 100mA	300mV @ 10mA, 100mA
Current - Collector Cutoff (Max)	100µA	100µA	100µA	100µA	100µA
DC Current Gain (hFE) (Min) @ Ic, Vce	210 @ 2mA, 10V	210 @ 2mA, 10V	210 @ 2mA, 10V	210 @ 2mA, 10V	210 @ 2mA, 10V
Power - Max	100 mW	200 mW	100 mW	150 mW	125 mW
Frequency - Transition	150MHz	150MHz	150MHz	150MHz	150MHz
Operating Temperature	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	SOT-1123	TO-236-3, SC-59, SOT-23-3	SOT-723	SC-85	SC-89, SOT-490
Supplier Device Package	USSMini3-F1-B	MINI3-G3-B	SSSMini3-F2-B	SMini3-F2-B	SSMini3-F3-B

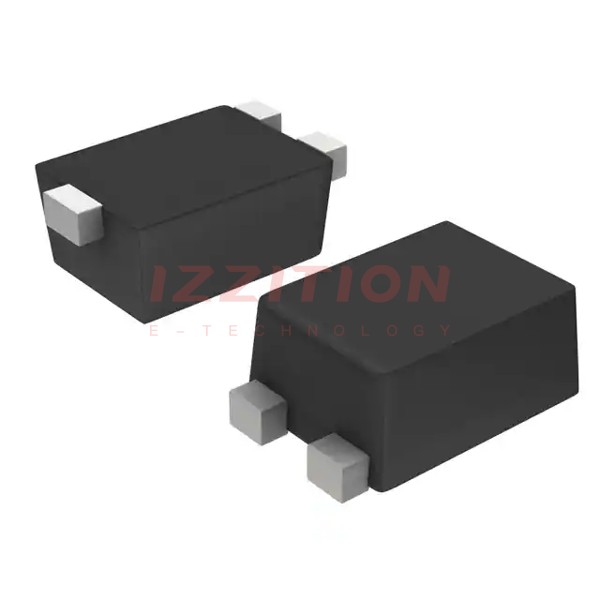

Panasonic Electronic Components DSCQ00100L

Transistor Type:	NPN
Current - Collector (Ic) (Max):	100 mA
Voltage - Collector Emitter Breakdown (Max):	50 V
Vce Saturation (Max) @ Ib, Ic:	300mV @ 10mA, 100mA
Current - Collector Cutoff (Max):	100µA
DC Current Gain (hFE) (Min) @ Ic, Vce:	210 @ 2mA, 10V
Power - Max:	100 mW
Frequency - Transition:	150MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SOT-1123
Supplier Device Package:	USSMini3-F1-B
