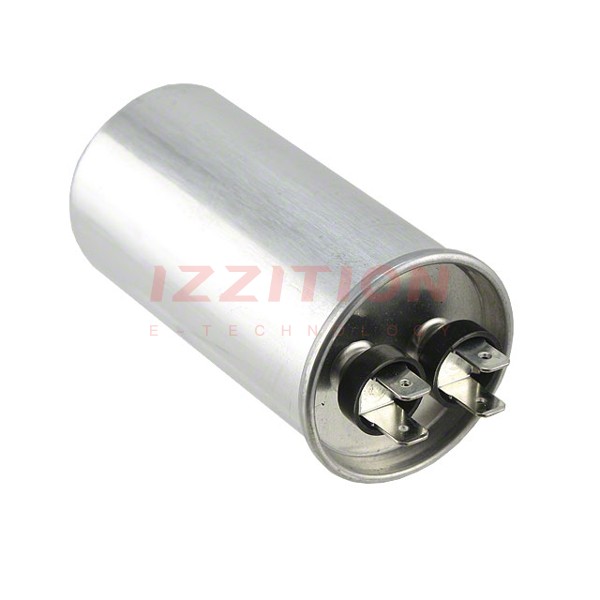

| Part Number | DS371206-CA | DS371306-CA | DS371406-CA | DS371506-CA | DS371256-CA |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 20 µF | 30 µF | 40 µF | 50 µF | 25 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | -5%, +10% |
| Voltage Rating - AC | 370V | 370V | 370V | 370V | 370V |
| Voltage Rating - DC | - | - | - | - | - |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C |
| Mounting Type | Chassis Mount, Requires Holder/Bracket | Chassis Mount, Requires Holder/Bracket | Chassis Mount, Requires Holder/Bracket | Chassis Mount, Requires Holder/Bracket | Chassis Mount, Requires Holder/Bracket |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
| Size / Dimension | 1.614" Dia (41.00mm) | 1.614" Dia (41.00mm) | 1.772" Dia (45.00mm) | 1.988" Dia (50.50mm) | 1.614" Dia (41.00mm) |
| Height - Seated (Max) | 3.622" (92.00mm) | 4.409" (112.00mm) | 4.409" (112.00mm) | 4.409" (112.00mm) | 4.016" (102.00mm) |
| Termination | Quick Connect, Disconnect | Quick Connect, Disconnect | Quick Connect, Disconnect | Quick Connect, Disconnect | Quick Connect, Disconnect |
| Lead Spacing | 0.630" (16.00mm) | 0.630" (16.00mm) | 0.709" (18.00mm) | 0.709" (18.00mm) | 0.630" (16.00mm) |
| Applications | Motor Run | Motor Run | Motor Run | Motor Run | Motor Run |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
