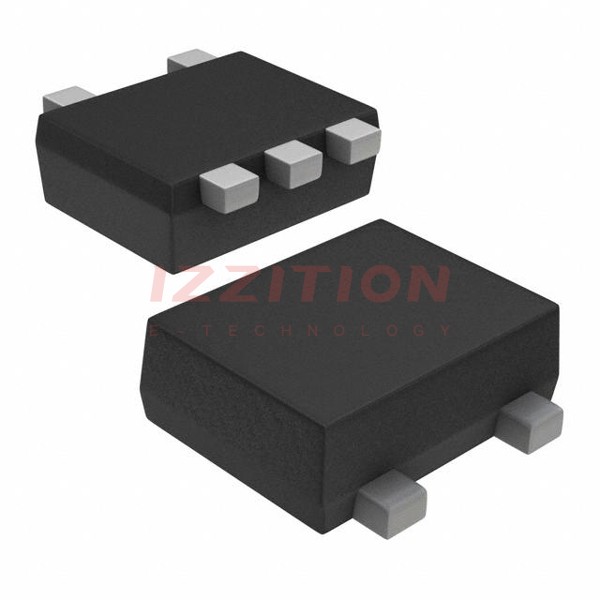

| Part Number | DMG963H10R | DMG964H10R | DMG963H50R | DMG963HC0R | DMG963HE0R | DMG963HD0R | DMG563H10R | DMG963010R |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Obsolete | Discontinued at Digi-Key | Obsolete | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Obsolete |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA | 100mA | 100mA | 100mA | 100mA | 100mA | 100mA | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V | 50V | 50V | 50V | 50V, 30V | 50V | 50V | 50V |
| Resistor - Base (R1) | 47kOhms, 4.7kOhms | 47kOhms, 4.7kOhms | 47kOhms, 10kOhms | 47kOhms, 510Ohms | 10kOhms | 10kOhms, 22kOhms | 47kOhms, 4.7kOhms | 10kOhms |
| Resistor - Emitter Base (R2) | 47kOhms, 10kOhms | 47kOhms, 10kOhms | 47kOhms | 47kOhms, 5.1kOhms | 10kOhms, 47kOhms | 10kOhms, 47kOhms | 47kOhms, 10kOhms | 10kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V / 30 @ 5mA, 10V | 80 @ 5mA, 10V / 30 @ 5mA, 10V | 80 @ 5mA, 10V | 80 @ 5mA, 10V / 20 @ 5mA, 10V | 35 @ 5mA, 10V / 80 @ 5mA, 10V | 35 @ 5mA, 10V / 80 @ 5mA, 10V | 80 @ 5mA, 10V / 30 @ 5mA, 10V | 35 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 500µA, 10mA | 250mV @ 500µA, 10mA | 250mV @ 500µA, 10mA | 250mV @ 500µA, 10mA | 250mV @ 500µA, 10mA / 1.2V @ 330µA, 50mA | 250mV @ 500µA, 10mA | 250mV @ 500µA, 10mA | 250mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA | 500nA | 500nA | 500nA | 500nA | 500nA | 500nA | 500nA |
| Frequency - Transition | - | - | - | - | - | - | - | - |
| Power - Max | 125mW | 125mW | 125mW | 125mW | 125mW | 125mW | 150mW | 125mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-665 | SOT-563, SOT-666 | SOT-665 | SOT-665 | SOT-665 | SOT-665 | 6-SMD (5 Leads), Flat Lead | SOT-665 |
| Supplier Device Package | SSMini5-F4-B | SSMini6-F3-B | SSMini5-F4-B | SSMini5-F4-B | SSMini5-F4-B | SSMini5-F4-B | SMini5-F3-B | SSMini5-F4-B |
