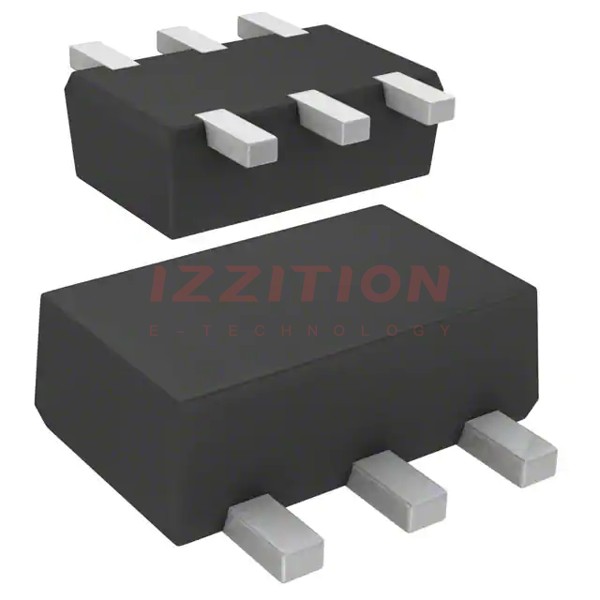

| Part Number | DMG564H20R | DMG564H30R |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V | 50V |
| Resistor - Base (R1) | 4.7kOhms, 1kOhms | 47kOhms, 1kOhms |
| Resistor - Emitter Base (R2) | 47kOhms, 10kOhms | 47kOhms, 10kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V / 30 @ 5mA, 10V | 80 @ 5mA, 10V / 30 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 500µA, 10mA | 250mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA | 500nA |
| Frequency - Transition | - | - |
| Power - Max | 150mW | 150mW |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 6-SMD, Flat Leads | 6-SMD, Flat Leads |
| Supplier Device Package | SMini6-F3-B | SMini6-F3-B |
