Please send RFQ , we will respond immediately.

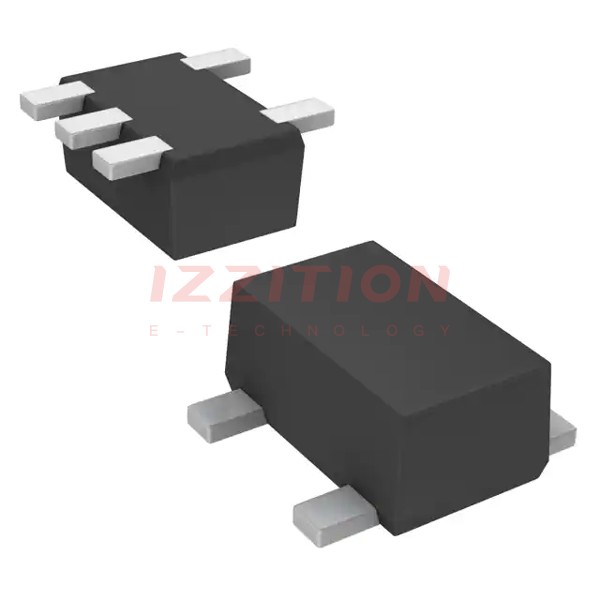

| Part Number | DMG563020R | DMG963020R | DMG263020R | DMG563010R |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Obsolete | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA | 100mA | 100mA | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V | 50V | 50V | 50V |
| Resistor - Base (R1) | 22kOhms | 22kOhms | 22kOhms | 10kOhms |
| Resistor - Emitter Base (R2) | 22kOhms | 22kOhms | 22kOhms | 10kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 5mA, 10V | 60 @ 5mA, 10V | 60 @ 5mA, 10V | 35 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 500µA, 10mA | 250mV @ 500µA, 10mA | 250mV @ 500µA, 10mA | 250mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA | 500nA | 500nA | 500nA |
| Frequency - Transition | - | - | - | - |
| Power - Max | 150mW | 125mW | 300mW | 150mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-SMD (5 Leads), Flat Lead | SOT-665 | SC-74A, SOT-753 | 6-SMD (5 Leads), Flat Lead |
| Supplier Device Package | SMini5-F3-B | SSMini5-F4-B | Mini5-G3-B | SMini5-F3-B |
