Please send RFQ , we will respond immediately.

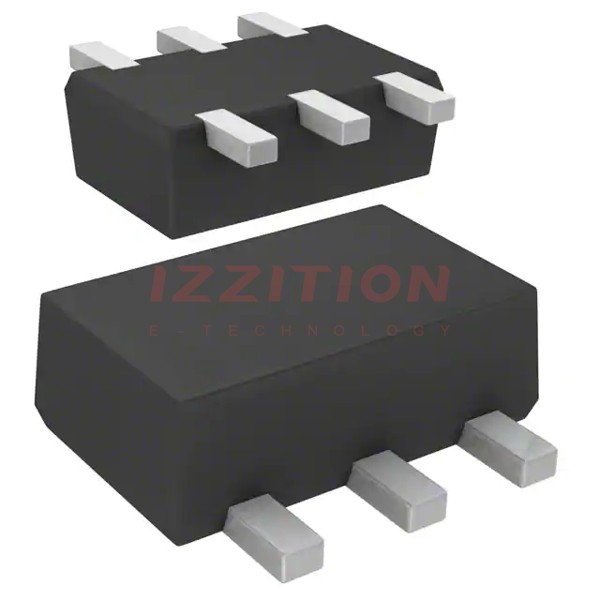

| Part Number | DME505010R | DME50C010R | DME50B010R | DMC505010R | DME205010R | DME501010R |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Obsolete | Obsolete | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Transistor Type | NPN, PNP | NPN, PNP Complementary Darlington | NPN, PNP Complementary Darlington | 2 NPN (Dual) | NPN, PNP | NPN, PNP (Emitter Coupled) |
| Current - Collector (Ic) (Max) | 100mA | 100mA | 100mA | 100mA | 100mA | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V | 50V | 50V | 50V | 50V | 50V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 10mA, 100mA, 500mV @ 10mA, 100mA | 300mV @ 10mA, 100mA, 500mV @ 10mA, 100mA | 300mV @ 10mA, 100mA, 500mV @ 10mA, 100mA | 300mV @ 10mA, 100mA | 300mV @ 10mA, 100mA, 500mV @ 10mA, 100mA | 300mV @ 10mA, 100mA, 500mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max) | 100µA | 100µA | 100µA | 100µA | 100µA | 100µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 210 @ 2mA, 10V | 210 @ 2mA, 10V | 210 @ 2mA, 10V | 210 @ 2mA, 10V | 210 @ 2mA, 10V | 210 @ 2mA, 10V |
| Power - Max | 150mW | 150mW | 150mW | 150mW | 300mW | 150mW |
| Frequency - Transition | 150MHz | 150MHz | 150MHz | 150MHz | 150MHz | 150MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-SMD, Flat Leads | 6-SMD (5 Leads), Flat Lead | 6-SMD (5 Leads), Flat Lead | 6-SMD, Flat Leads | SOT-23-6 | 6-SMD (5 Leads), Flat Lead |
| Supplier Device Package | SMini6-F3-B | SMini5-F3-B | SMini5-F3-B | SMini6-F3-B | Mini6-G4-B | SMini5-F3-B |
