| Part Number | DMC505010R | DMC506010R | DME505010R | DMC205010R | DMC501010R | DMC504010R |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Transistor Type | 2 NPN (Dual) | 2 NPN (Dual) | NPN, PNP | 2 NPN (Dual) | 2 NPN (Dual) | 2 NPN (Dual) |
| Current - Collector (Ic) (Max) | 100mA | 100mA | 100mA | 100mA | 100mA | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V | 50V | 50V | 50V | 50V | 50V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 10mA, 100mA | 300mV @ 10mA, 100mA | 300mV @ 10mA, 100mA, 500mV @ 10mA, 100mA | 300mV @ 10mA, 100mA | 300mV @ 10mA, 100mA | 300mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max) | 100µA | 100µA | 100µA | 100µA | 100µA | 100µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 210 @ 2mA, 10V | 210 @ 2mA, 10V | 210 @ 2mA, 10V | 210 @ 2mA, 10V | 210 @ 2mA, 10V | 210 @ 2mA, 10V |
| Power - Max | 150mW | 150mW | 150mW | 300mW | 150mW | 150mW |
| Frequency - Transition | 150MHz | 150MHz | 150MHz | 150MHz | 150MHz | 150MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

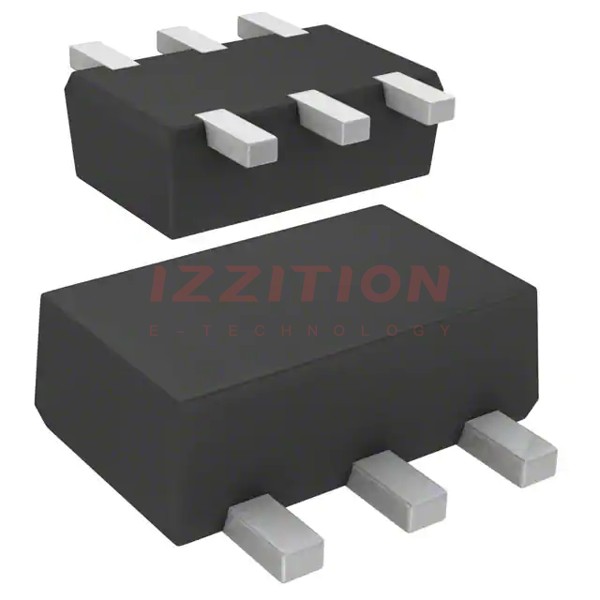

| Package / Case | 6-SMD, Flat Leads | 6-SMD, Flat Leads | 6-SMD, Flat Leads | SOT-23-6 | 5-SMD, Flat Leads | 6-SMD, Flat Leads |
| Supplier Device Package | SMini6-F3-B | SMini6-F3-B | SMini6-F3-B | Mini6-G4-B | SMini5-F3-B | SMini6-F3-B |
