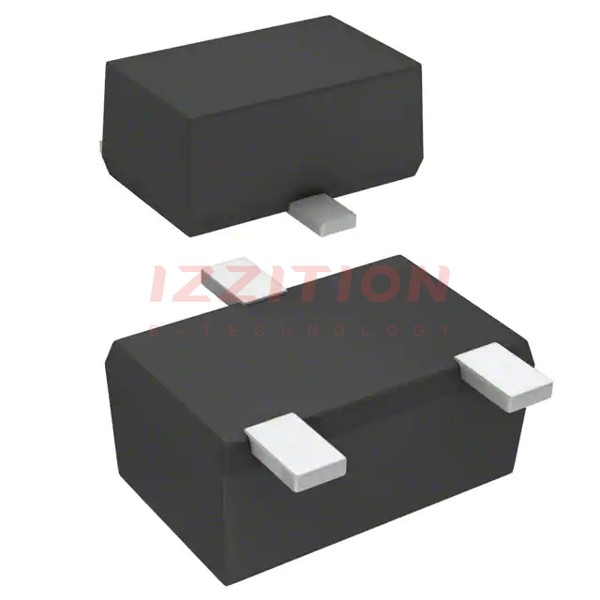

| Part Number | DB3J316J0L | DB3X316J0L | DB3J316N0L | DB3J314J0L | DB3J316F0L |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Diode Configuration | 1 Pair Common Anode | 1 Pair Common Anode | 1 Pair Common Cathode | 1 Pair Common Anode | 1 Pair Series Connection |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V | 30 V | 30 V |
| Current - Average Rectified (Io) (per Diode) | 100mA | 100mA | 100mA | 30mA (DC) | 100mA |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 100 mA | 550 mV @ 100 mA | 550 mV @ 100 mA | 1 V @ 30 mA | 550 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 800 ps | 800 ps | 800 ps | 1 ns | 800 ps |
| Current - Reverse Leakage @ Vr | 15 µA @ 30 V | 15 µA @ 30 V | 15 µA @ 30 V | 300 nA @ 30 V | 15 µA @ 30 V |
| Operating Temperature - Junction | 125°C (Max) | 125°C (Max) | 125°C (Max) | 125°C (Max) | 125°C (Max) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-85 | TO-236-3, SC-59, SOT-23-3 | SC-85 | SC-85 | SC-85 |
| Supplier Device Package | SMini3-F2-B | MINI3-G3-B | SMini3-F2-B | SMini3-F2-B | SMini3-F2-B |
