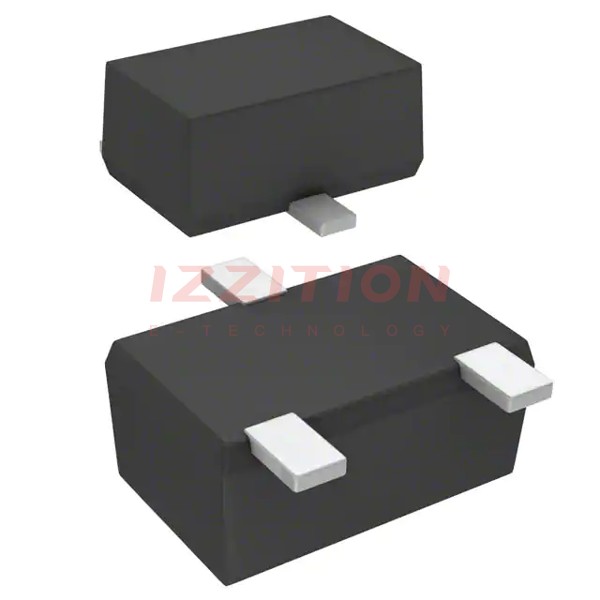

| Part Number | DB3J313K0L | DB3X313K0L | DB3J316K0L |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V |
| Current - Average Rectified (Io) | 200mA | 200mA | 100mA |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 200 mA | 550 mV @ 200 mA | 550 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 1.5 ns | 1.5 ns | 800 ps |
| Current - Reverse Leakage @ Vr | 50 µA @ 30 V | 50 µA @ 30 V | 15 µA @ 30 V |
| Capacitance @ Vr, F | 3.8pF @ 10V, 1MHz | 3.8pF @ 10V, 1MHz | 2pF @ 10V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-85 | TO-236-3, SC-59, SOT-23-3 | SC-85 |
| Supplier Device Package | SMini3-F2-B | MINI3-G3-B | SMini3-F2-B |
| Operating Temperature - Junction | 125°C (Max) | 125°C (Max) | 125°C (Max) |
