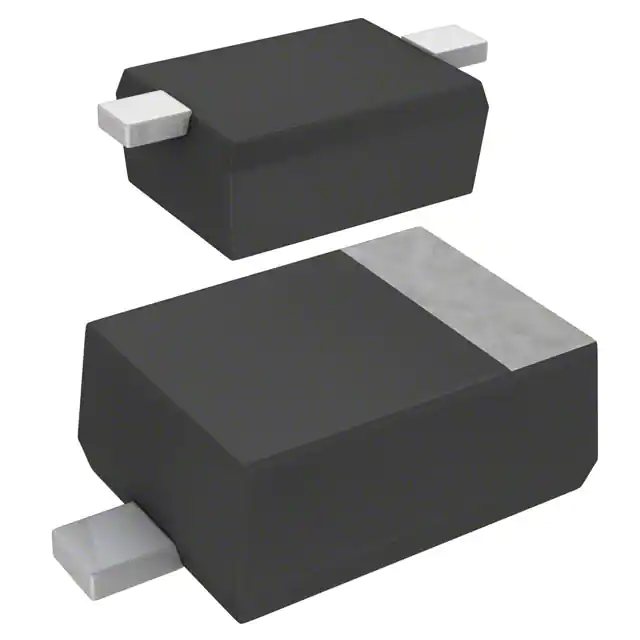

| Part Number | DB2J31600L | DB2J31700L | DB2S31600L | DB2731600L | DB2J31000L | DB2J31300L | DB2J31400L |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V |
| Current - Average Rectified (Io) | 100mA | 1A | 100mA | 100mA | 200mA | 200mA | 30mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 100 mA | 520 mV @ 1 A | 550 mV @ 100 mA | 550 mV @ 100 mA | 470 mV @ 200 mA | 550 mV @ 200 mA | 1 V @ 30 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Fast Recovery =< 500ns, > 200mA (Io) | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 800 ps | 7.8 ns | 800 ps | 800 ps | 1.6 ns | 1.5 ns | 1 ns |
| Current - Reverse Leakage @ Vr | 15 µA @ 30 V | 100 µA @ 40 V | 15 µA @ 30 V | 15 µA @ 30 V | 200 µA @ 30 V | 50 µA @ 30 V | 300 nA @ 30 V |
| Capacitance @ Vr, F | 2pF @ 10V, 1MHz | 22pF @ 10V, 1MHz | 2pF @ 10V, 1MHz | 2pF @ 10V, 1MHz | 4.5pF @ 10V, 1MHz | 3.8pF @ 10V, 1MHz | 1.5pF @ 10V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-90, SOD-323F | SC-90, SOD-323F | SC-79, SOD-523 | 2-SMD, Flat Lead | SC-90, SOD-323F | SC-90, SOD-323F | SC-90, SOD-323F |
| Supplier Device Package | SMini2-F5-B | SMini2-F5-B | SSMini2-F5-B | SSSMini2-F4-B | SMini2-F5-B | SMini2-F5-B | SMini2-F5-B |
| Operating Temperature - Junction | 125°C (Max) | 125°C (Max) | 125°C (Max) | 125°C (Max) | 125°C (Max) | 125°C (Max) | 125°C (Max) |
