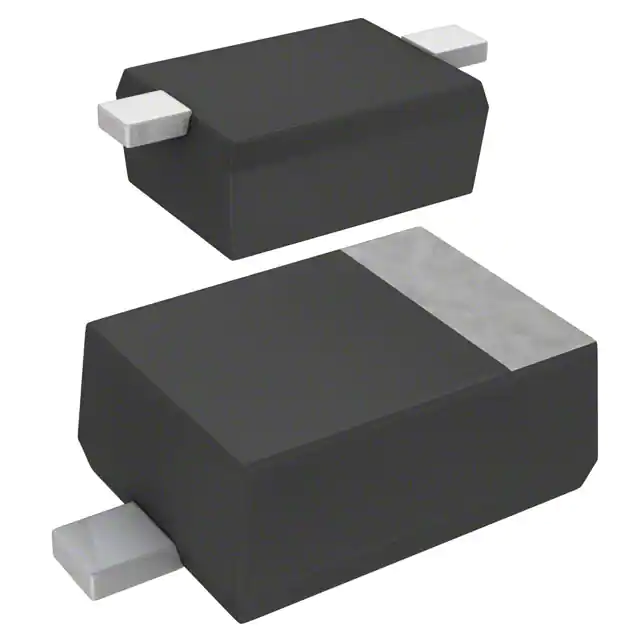

| Part Number | DB2J20100L | DB2J50100L | DB2J20800L | DB2J20900L | DB2J20600L | DB2X20100L |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V | 50 V | 20 V | 20 V | 20 V | 20 V |
| Current - Average Rectified (Io) | 500mA | 200mA | 500mA | 500mA | 1A | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 500 mA | 550 mV @ 200 mA | 420 mV @ 500 mA | 500 mV @ 500 mA | 450 mV @ 1 A | 550 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Small Signal =< 200mA (Io), Any Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 4.3 ns | 1.6 ns | 4.3 ns | 2.4 ns | 6 ns | 4.3 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 10 V | 200 µA @ 50 V | 200 µA @ 20 V | 30 µA @ 10 V | 100 µA @ 20 V | 10 µA @ 10 V |
| Capacitance @ Vr, F | 12pF @ 10V, 1MHz | 4pF @ 10V, 1MHz | 12pF @ 10V, 1MHz | 7pF @ 10V, 1MHz | 20pF @ 10V, 1MHz | 12pF @ 10V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-90, SOD-323F | SC-90, SOD-323F | SC-90, SOD-323F | SC-90, SOD-323F | SC-90, SOD-323F | SOD-123 |
| Supplier Device Package | SMini2-F5-B | SMini2-F5-B | SMini2-F5-B | SMini2-F5-B | SMini2-F5-B | SOD-123 |
| Operating Temperature - Junction | 125°C (Max) | 125°C (Max) | 125°C (Max) | 125°C (Max) | 150°C (Max) | 125°C (Max) |
