DB2G43200L1
  • Share:

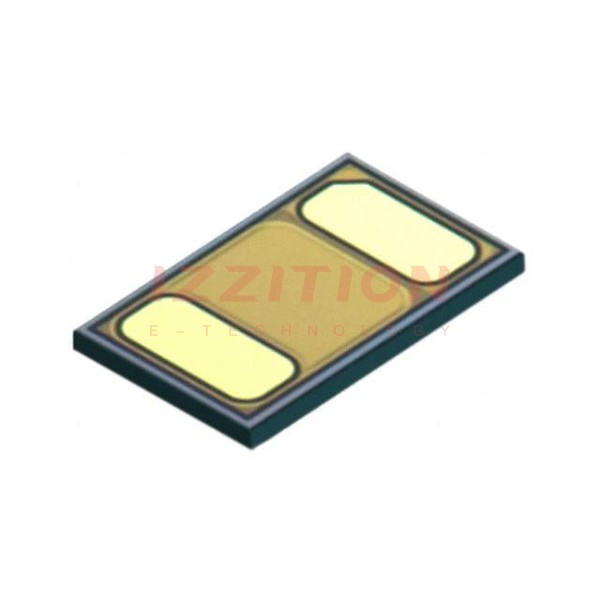

Panasonic Electronic Components DB2G43200L1

Manufacturer No:
DB2G43200L1
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
DB2G43200L1 Datasheet
ECAD Model:
-
Description:
CSP SCHOTTKY BARRIER DIODE
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):40 V
Current - Average Rectified (Io):2A
Voltage - Forward (Vf) (Max) @ If:520 mV @ 2 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):14 ns
Current - Reverse Leakage @ Vr:400 µA @ 40 V
Capacitance @ Vr, F:47pF @ 10V, 1MHz
Mounting Type:Surface Mount
Package / Case:0404 (1010 Metric)
Supplier Device Package:DCSP1010010-N1
Operating Temperature - Junction:150°C (Max)
0 Remaining View Similar

In Stock

-
206

Please send RFQ , we will respond immediately.
