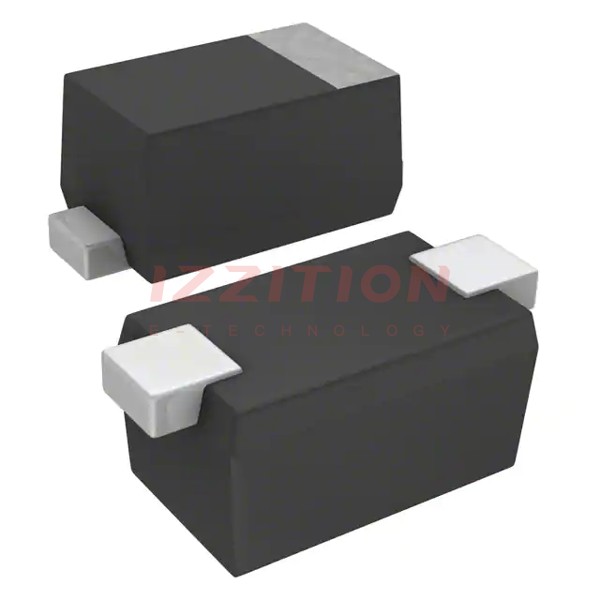

| Part Number | DB2731400L | DB2731600L | DB2J31400L | DB2S31400L | DB2U31400L |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Obsolete |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V | 30 V | 30 V |
| Current - Average Rectified (Io) | 30mA (DC) | 100mA | 30mA (DC) | 30mA (DC) | 30mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 30 mA | 550 mV @ 100 mA | 1 V @ 30 mA | 1 V @ 30 mA | 1 V @ 30 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 1 ns | 800 ps | 1 ns | 1 ns | 1 ns |
| Current - Reverse Leakage @ Vr | 300 nA @ 30 V | 15 µA @ 30 V | 300 nA @ 30 V | 300 nA @ 30 V | 300 nA @ 30 V |
| Capacitance @ Vr, F | 1.5pF @ 10V, 1MHz | 2pF @ 10V, 1MHz | 1.5pF @ 10V, 1MHz | 1.5pF @ 10V, 1MHz | 1.5pF @ 10V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | 2-SMD, Flat Lead | SC-90, SOD-323F | SC-79, SOD-523 | SOD-923 |
| Supplier Device Package | SSSMini2-F4-B | SSSMini2-F4-B | SMini2-F5-B | SSMini2-F5-B | USSMINI2-F2-B |
| Operating Temperature - Junction | 125°C (Max) | 125°C (Max) | 125°C (Max) | 125°C (Max) | 125°C (Max) |
