Please send RFQ , we will respond immediately.

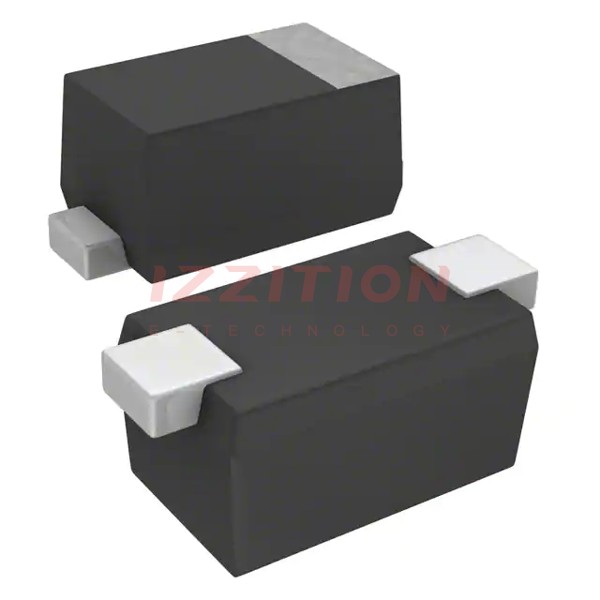

| Part Number | DB2730900L | DB2U30900L | DB2S30900L | DB2J30900L | DB2730800L |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Obsolete | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V | 30 V | 30 V |
| Current - Average Rectified (Io) | 100mA | 100mA | 100mA | 100mA | 100mA |
| Voltage - Forward (Vf) (Max) @ If | 580 mV @ 100 mA | 580 mV @ 100 mA | 580 mV @ 100 mA | 580 mV @ 100 mA | 420 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 1 ns | 1.3 ns | 1.3 ns | 1.3 ns | 1.3 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 30 V | 2 µA @ 30 V | 2 µA @ 30 V | 2 µA @ 30 V | 120 µA @ 30 V |
| Capacitance @ Vr, F | 9pF @ 0V, 1MHz | 3pF @ 10V, 1MHz | 3pF @ 10V, 1MHz | 3pF @ 10V, 1MHz | 2.9pF @ 10V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | SOD-923 | SC-79, SOD-523 | SC-90, SOD-323F | 2-SMD, Flat Lead |
| Supplier Device Package | SSSMini2-F4-B | USSMINI2-F2-B | SSMini2-F5-B | SMini2-F5-B | SSSMini2-F4-B |
| Operating Temperature - Junction | 125°C (Max) | 125°C (Max) | 125°C (Max) | 125°C (Max) | 125°C (Max) |
