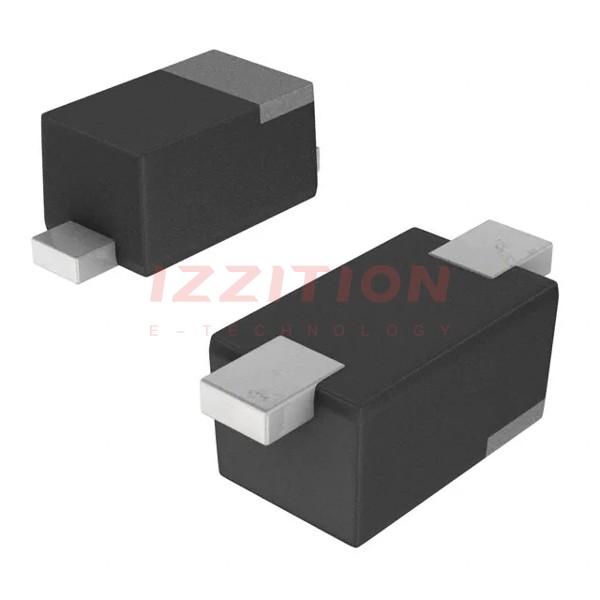

| Part Number | DB2141200L | DB2141300L |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Diode Type | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V |
| Current - Average Rectified (Io) | 1.5A | 2A |
| Voltage - Forward (Vf) (Max) @ If | 480 mV @ 1.5 A | 530 mV @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 12 ns | 12 ns |
| Current - Reverse Leakage @ Vr | 150 µA @ 40 V | 150 µA @ 40 V |
| Capacitance @ Vr, F | 43pF @ 10V, 1MHz | 43pF @ 10V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | 2-SMD, Flat Lead |
| Supplier Device Package | SMINI2-F4-B-B | SMINI2-F4-B-B |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) |
