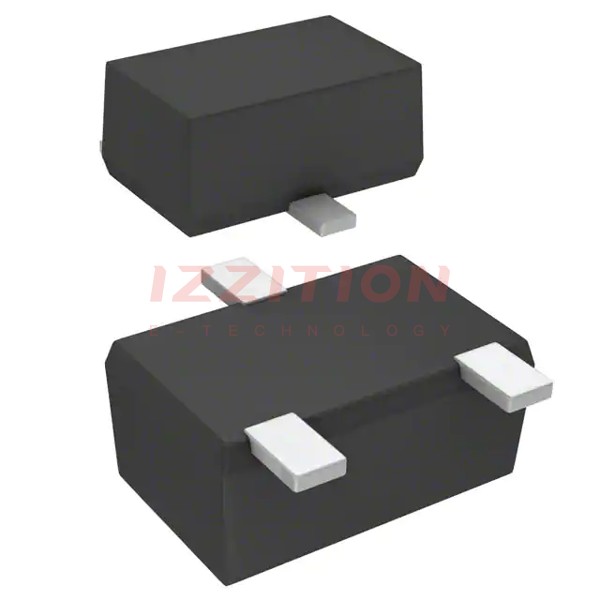

| Part Number | DA3J107K0L | DA3X107K0L | DA3J101K0L |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 300 V | 300 V | 80 V |
| Current - Average Rectified (Io) | 100mA | 100mA | 100mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA | 1.2 V @ 100 mA | 1.2 V @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 60 ns | 60 ns | 3 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 300 V | 1 µA @ 300 V | 100 nA @ 80 V |
| Capacitance @ Vr, F | 3pF @ 6V, 1MHz | 3pF @ 6V, 1MHz | 1.2pF @ 0V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-85 | TO-236-3, SC-59, SOT-23-3 | SC-85 |
| Supplier Device Package | SMini3-F2-B | MINI3-G3-B | SMini3-F2-B |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) |
