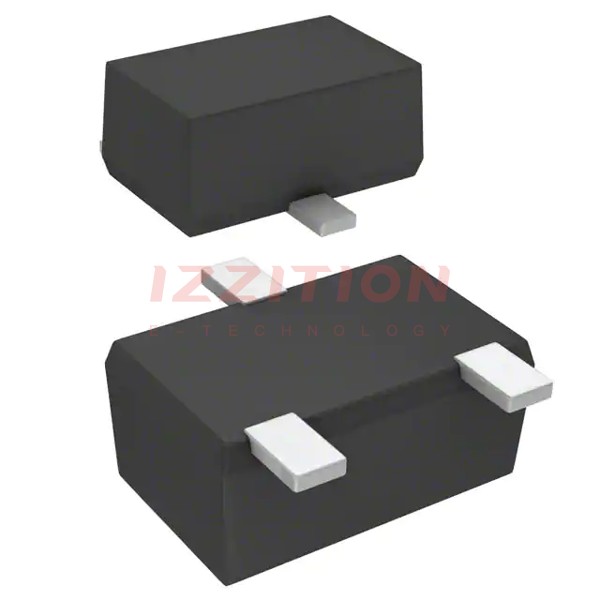

| Part Number | DA3J103E0L | DA3X103E0L | DA3S103E0L | DA37103E0L |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 80 V | 80 V | 80 V | 80 V |
| Current - Average Rectified (Io) (per Diode) | 100mA (DC) | 100mA (DC) | 100mA (DC) | 100mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA | 1.2 V @ 100 mA | 1.2 V @ 100 mA | 1.2 V @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 10 ns | 10 ns | 10 ns | 10 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 80 V | 100 nA @ 80 V | 100 nA @ 80 V | 100 nA @ 80 V |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-85 | TO-236-3, SC-59, SOT-23-3 | SC-89, SOT-490 | SOT-723 |
| Supplier Device Package | SMini3-F2-B | MINI3-G3-B | SSMini3-F3-B | SSSMini3-F2-B |
