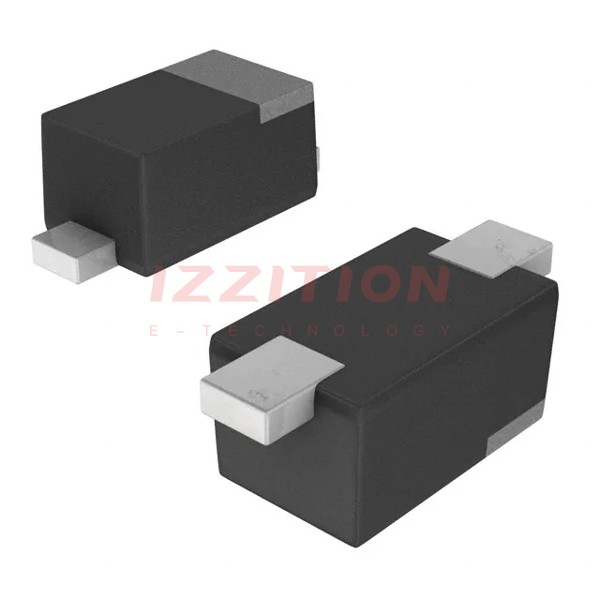

| Part Number | DA2U10100L | DA2710100L | DA2J10100L | DA2S10100L |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 80 V | 80 V | 80 V | 80 V |
| Current - Average Rectified (Io) | 100mA | 100mA (DC) | 100mA (DC) | 100mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA | 1.2 V @ 100 mA | 1.2 V @ 100 mA | 1.2 V @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 3 ns | 3 ns | 3 ns | 3 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 80 V | 100 nA @ 75 V | 100 nA @ 75 V | 100 nA @ 75 V |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz | 1.2pF @ 0V, 1MHz | 1.2pF @ 0V, 1MHz | 1.2pF @ 0V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-923 | 2-SMD, Flat Lead | SC-90, SOD-323F | SC-79, SOD-523 |
| Supplier Device Package | USSMINI2-F2-B | SSSMini2-F4-B | SMini2-F5-B | SSMini2-F5-B |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) |
