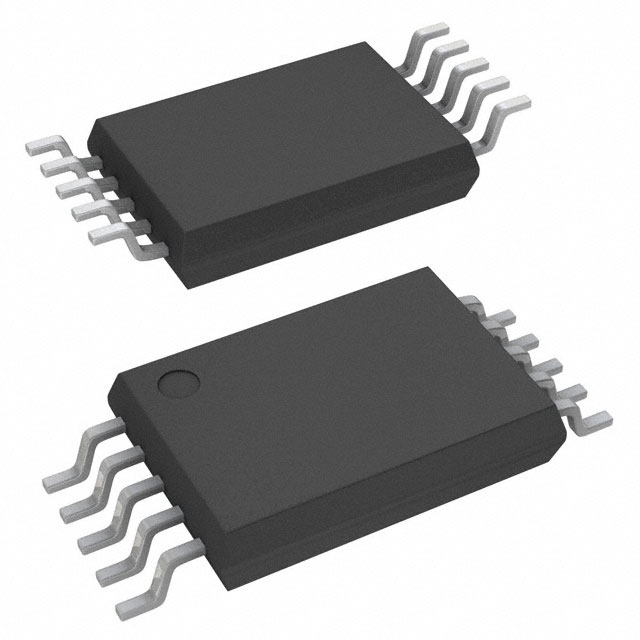

| Part Number | AN8015SH-E1 | AN8015SH-E1V |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Output Type | Transistor Driver | Transistor Driver |
| Function | Step-Up, Step-Down | Step-Up, Step-Down |
| Output Configuration | Positive or Negative | Positive or Negative |
| Topology | Buck, Boost | Buck, Boost |
| Number of Outputs | 1 | 1 |
| Output Phases | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 3.6V ~ 34V | 3.6V ~ 34V |
| Frequency - Switching | 2kHz ~ 500kHz | 2kHz ~ 500kHz |
| Duty Cycle (Max) | 90% | 90% |
| Synchronous Rectifier | No | No |
| Clock Sync | No | No |
| Serial Interfaces | - | - |
| Control Features | Frequency Control | Frequency Control |
| Operating Temperature | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 10-FSOP (0.169", 4.30mm Width) | 10-FSOP (0.169", 4.30mm Width) |
| Supplier Device Package | 10-SSOP | 10-SSOP |
