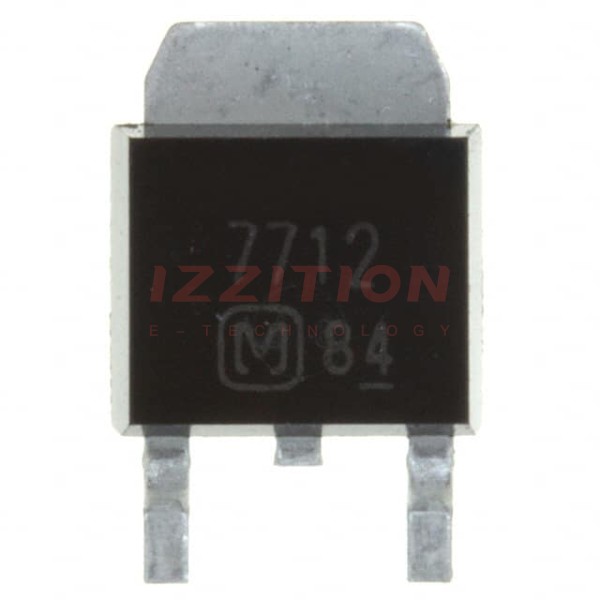

| Part Number | AN7712SP | AN7715SP | AN7710SP |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 23V | 26.5V | 21V |
| Voltage - Output (Min/Fixed) | 12V | 15V | 10V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | - | - | - |
| Current - Output | 1.2A | 1.2A | 1.2A |
| Current - Quiescent (Iq) | 5 mA | 5 mA | 5 mA |
| Current - Supply (Max) | - | - | - |
| PSRR | 62dB (120Hz) | 60dB (120Hz) | 64dB (120Hz) |
| Control Features | - | - | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | 25°C ~ 125°C | 25°C ~ 125°C | 25°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | SP-3SUA | SP-3SUA | SP-3SUA |
