AN7510
  • Share:

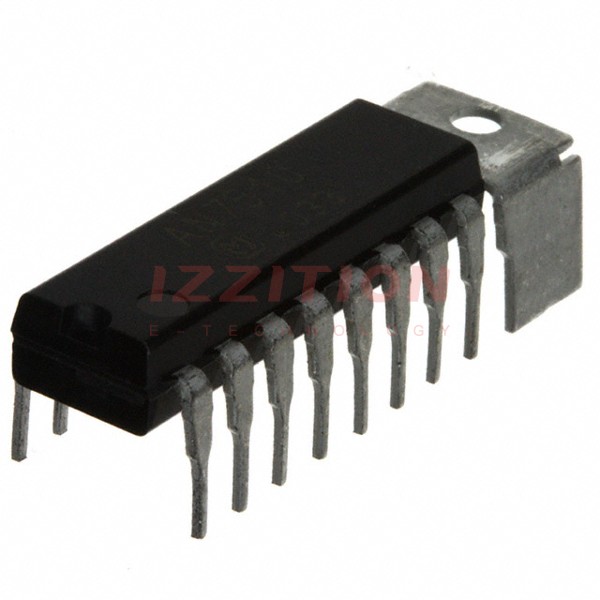

Panasonic Electronic Components AN7510

Manufacturer No:
AN7510
Manufacturer:
Panasonic Electronic Components
Package:
Tube
Datasheet:
AN7510 Datasheet
ECAD Model:
-
Description:
IC AMP CLASS AB STER 1.1W 16DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Class AB
Output Type:2-Channel (Stereo)
Max Output Power x Channels @ Load:1.1W x 2 @ 8Ohm
Voltage - Supply:3.5V ~ 13.5V
Features:Mute, Standby, Thermal Protection, Volume Control
Mounting Type:Through Hole
Operating Temperature:-25°C ~ 70°C (TA)
Supplier Device Package:16-DIP
Package / Case:16-DIP (0.300", 7.62mm) + Ground Tab
0 Remaining View Similar

In Stock

-
362

Please send RFQ , we will respond immediately.

Similar Products

Part Number AN7510 AN7512   AN7511   AN7513   AN7580
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete
Type Class AB Class AB Class AB Class AB Class AB
Output Type 2-Channel (Stereo) 2-Channel (Stereo) 1-Channel (Mono) 1-Channel (Mono) 2-Channel (Stereo)
Max Output Power x Channels @ Load 1.1W x 2 @ 8Ohm 1W x 2 @ 8Ohm 1.1W x 1 @ 8Ohm 1W x 1 @ 8Ohm 25W x 2 @ 6Ohm
Voltage - Supply 3.5V ~ 13.5V 3.5V ~ 13.5V 3.5V ~ 13.5V 3.5V ~ 13.5V 8V ~ 20V
Features Mute, Standby, Thermal Protection, Volume Control Standby, Thermal Protection, Volume Control Mute, Standby, Thermal Protection Standby, Thermal Protection, Volume Control Mute, Short-Circuit and Thermal Protection, Standby
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole
Operating Temperature -25°C ~ 70°C (TA) -25°C ~ 70°C (TA) -25°C ~ 70°C (TA) -25°C ~ 70°C (TA) -25°C ~ 75°C (TA)
Supplier Device Package 16-DIP 16-DIP 8-DIP 8-DIP 12-SIL
Package / Case 16-DIP (0.300", 7.62mm) + Ground Tab 16-DIP (0.300", 7.62mm) + Ground Tab 8-DIP (0.300", 7.62mm) 8-DIP (0.300", 7.62mm) 12-SIP + Tab
