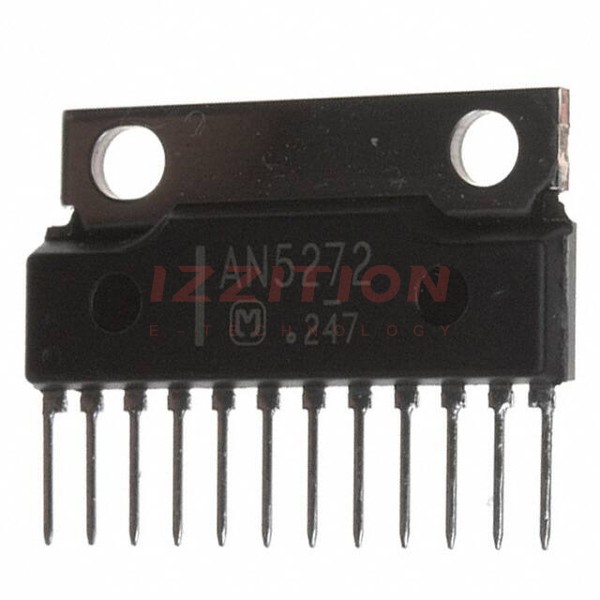

| Part Number | AN5274 | AN5278 | AN5279 | AN5275 | AN5276 | AN5277 | AN5272 | AN5273 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Class AB | Class AB | Class AB | Class AB | Class AB | Class AB | Class AB | Class AB |
| Output Type | 2-Channel (Stereo) | 1-Channel (Mono) | 1-Channel (Mono) | 2-Channel (Stereo) | 2-Channel (Stereo) | 2-Channel (Stereo) | 2-Channel (Stereo) | 2-Channel (Stereo) |
| Max Output Power x Channels @ Load | 4.1W x 2 @ 8Ohm | 9W x 1 @ 8Ohm | 7W x 1 @ 8Ohm | 15W x 2 @ 8Ohm | 7W x 2 @ 8Ohm | 10W x 2 @ 8Ohm | 4.1W x 2 @ 8Ohm | 4.1W x 2 @ 8Ohm |
| Voltage - Supply | 14.2V ~ 27.5V | 12V ~ 26V | 10V ~ 24V | 10V ~ 40V | 10V ~ 24V | 10V ~ 32V | 12.2V ~ 27.5V | 12.2V ~ 27.5V |
| Features | Mute, Short-Circuit and Thermal Protection, Volume Control | Mute, Tone and Volume Control | Mute, Short-Circuit and Thermal Protection, Standby | Mute, Short-Circuit and Thermal Protection | Mute, Short-Circuit and Thermal Protection, Standby | Mute, Short-Circuit and Thermal Protection, Standby | Short-Circuit and Thermal Protection, Volume Control | Mute, Short-Circuit and Thermal Protection, Volume Control |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Operating Temperature | -25°C ~ 75°C (TA) | -20°C ~ 70°C (TA) | -25°C ~ 75°C (TA) | -25°C ~ 80°C (TA) | -25°C ~ 75°C (TA) | -25°C ~ 75°C (TA) | -25°C ~ 75°C (TA) | -25°C ~ 75°C (TA) |
| Supplier Device Package | 12-SIL | 9-HSIP | 9-HSIP | 12-SIL | 12-SIL | 12-SIL | 12-SIL | 12-SIL |
| Package / Case | 12-SIP + Tab | 9-SIP | 9-SIP | 12-SIP + Tab | 12-SIP + Tab | 12-SIP + Tab | 12-SIP + Tab | 12-SIP + Tab |
