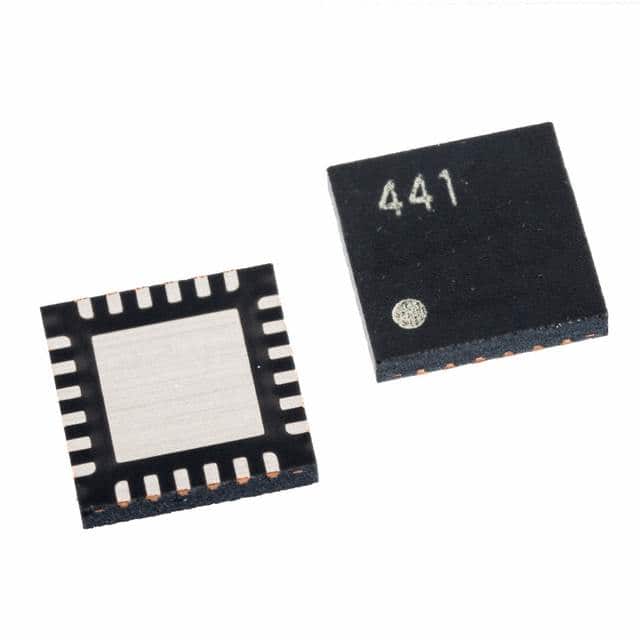

| Part Number | AN44140A-VB | AN44142A-VB |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Half Bridge (3) | Half Bridge (3) |
| Applications | DC Motors, General Purpose | DC Motors, General Purpose |
| Interface | Logic | Logic |
| Load Type | Inductive | Inductive |
| Technology | Power MOSFET | Power MOSFET |
| Rds On (Typ) | 1.2Ohm | 1Ohm |
| Current - Output / Channel | - | - |
| Current - Peak Output | - | - |
| Voltage - Supply | 6V ~ 26.4V | 4.5V ~ 26.4V |
| Voltage - Load | 6V ~ 26.4V | 4.5V ~ 26.4V |
| Operating Temperature | -40°C ~ 95°C (TA) | -40°C ~ 95°C (TA) |
| Features | - | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, UVLO | Current Limiting, Over Temperature, Over Voltage, UVLO |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 24-WFBGA | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) | 24-HQFN (4x4) |
