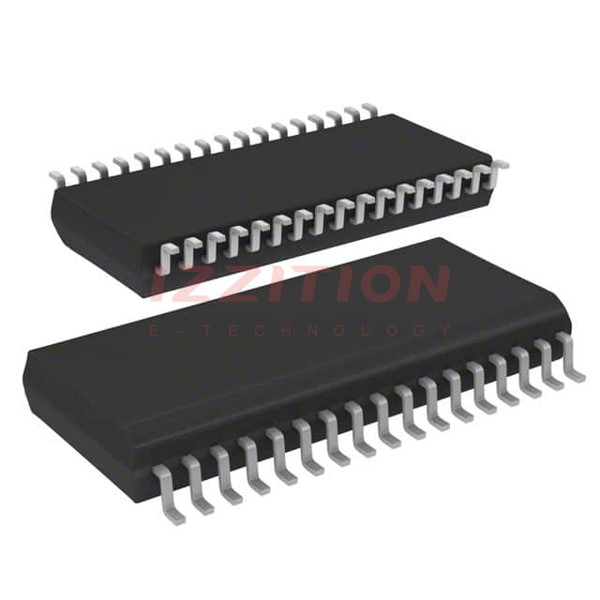

| Part Number | AN44075A-VF | AN44065A-VF | AN44071A-VF |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Motor Type - Stepper | - | Bipolar | Bipolar |
| Motor Type - AC, DC | Brushed DC | - | - |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) | Half Bridge (4) | Half Bridge (8) |
| Interface | Parallel | Parallel, PWM | Parallel, PWM |
| Technology | BiCDMOS | Power MOSFET | Power MOSFET |
| Step Resolution | - | 1, 1/2, 1/8, 1/16 | 1, 1/2, 1/8, 1/16, 1/32 |
| Applications | General Purpose | General Purpose | General Purpose |
| Current - Output | 3A | 1.5A | 1A, 1.7A |
| Voltage - Supply | 10V ~ 35V | 4.5V ~ 5.5V | 10V ~ 34V |
| Voltage - Load | 10V ~ 35V | 18V ~ 28V | 10V ~ 34V |
| Operating Temperature | -20°C ~ 70°C (TA) | -20°C ~ 120°C (TJ) | -20°C ~ 120°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 34-TSOP (0.240", 6.10mm Width) Exposed Pad | 28-BSOP (0.327", 8.30mm Width) + 2 Heat Tabs | 56-TFSOP (0.240", 6.10mm Width) Exposed Pad |
| Supplier Device Package | 34-HSOP | 28-HSOP | 56-HSOP |
