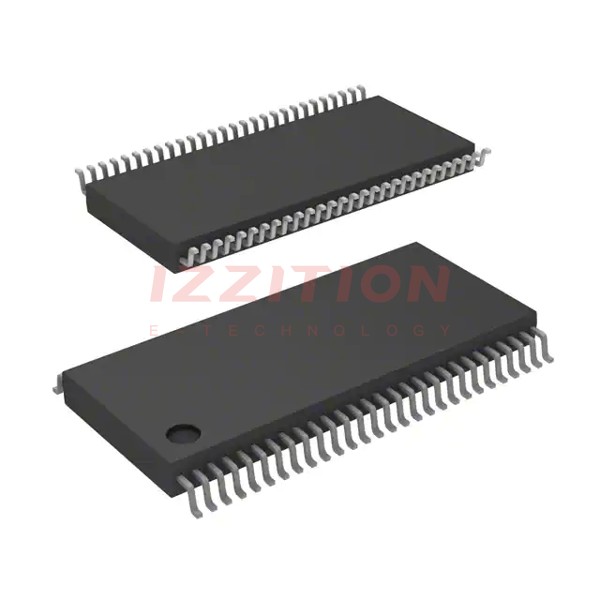

| Part Number | AN44071A-VF | AN44075A-VF |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Motor Type - Stepper | Bipolar | - |
| Motor Type - AC, DC | - | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (8) | Half Bridge (2) |
| Interface | Parallel, PWM | Parallel |
| Technology | Power MOSFET | BiCDMOS |
| Step Resolution | 1, 1/2, 1/8, 1/16, 1/32 | - |
| Applications | General Purpose | General Purpose |
| Current - Output | 1A, 1.7A | 3A |
| Voltage - Supply | 10V ~ 34V | 10V ~ 35V |
| Voltage - Load | 10V ~ 34V | 10V ~ 35V |
| Operating Temperature | -20°C ~ 120°C (TJ) | -20°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) Exposed Pad | 34-TSOP (0.240", 6.10mm Width) Exposed Pad |
| Supplier Device Package | 56-HSOP | 34-HSOP |
