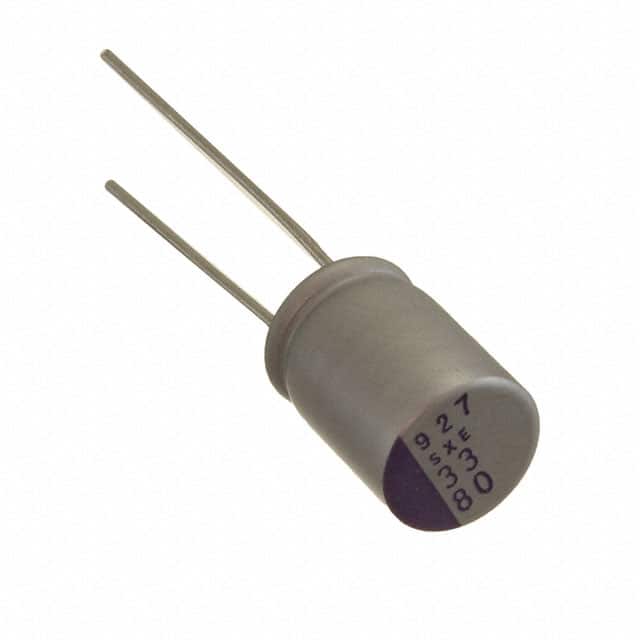

| Part Number | 80SXE33M | 80SXV33M |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Type | Polymer | Polymer |
| Capacitance | 33 µF | 33 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 80 V | 80 V |
| ESR (Equivalent Series Resistance) | 35mOhm | 35mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Features | - | - |
| Ripple Current @ Low Frequency | 124.5 mA @ 120 Hz | 124.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.49 A @ 100 kHz | 2.49 A @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | 0.138" (3.50mm) | - |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.472" (12.00mm) |
| Surface Mount Land Size | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Through Hole | Surface Mount |
| Package / Case | Radial, Can | Radial, Can - SMD |
