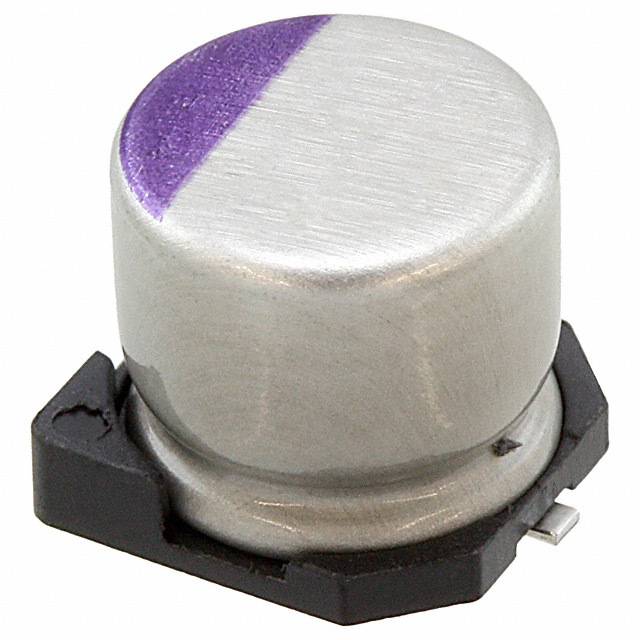

| Part Number | 6SVPC220M | 6SVPC820M | 6SVPE220M | 6SVPC220MV | 6SVPS220M | 6SEPC220M | 6SVP220M |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Polymer | Polymer | Polymer | Polymer | Polymer | Polymer | Polymer |
| Capacitance | 220 µF | 820 µF | 220 µF | 220 µF | 220 µF | 220 µF | 220 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | 27mOhm | 12mOhm | 10mOhm | 15mOhm | 22mOhm | 18mOhm | 25mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Features | - | - | - | - | - | - | - |
| Ripple Current @ Low Frequency | 116 mA @ 120 Hz | 235 mA @ 120 Hz | 195 mA @ 120 Hz | 158 mA @ 120 Hz | 161 mA @ 120 Hz | 149 mA @ 120 Hz | 185 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.32 A @ 100 kHz | 4.7 A @ 100 kHz | 3.9 A @ 100 kHz | 3.16 A @ 100 kHz | 3.22 A @ 100 kHz | 2.98 A @ 100 kHz | 3.7 A @ 100 kHz |
| Impedance | - | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | 0.098" (2.50mm) | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.472" (12.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.276" (7.00mm) | 0.217" (5.50mm) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can | Radial, Can - SMD |
