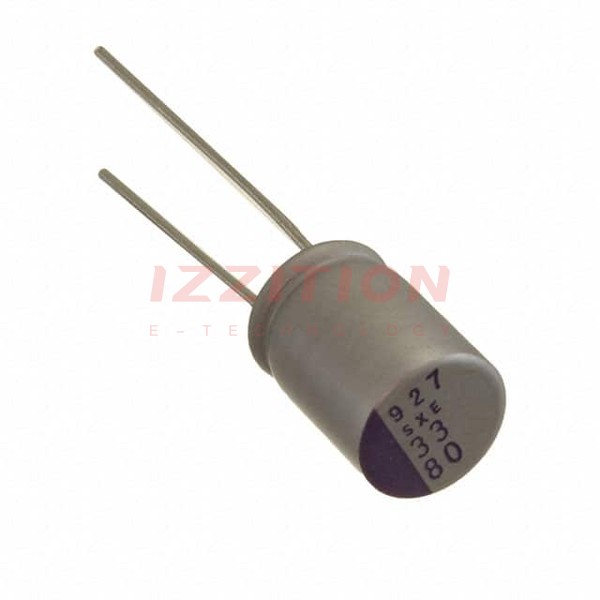

| Part Number | 63SXE39MX | 63SXV39MX | 63SXE39M |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Type | Polymer | Polymer | Polymer |
| Capacitance | 39 µF | 39 µF | 39 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 63 V | 63 V |
| ESR (Equivalent Series Resistance) | 25mOhm | 50mOhm | 25mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C | 1000 Hrs @ 125°C | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Features | - | - | - |
| Ripple Current @ Low Frequency | 34.5 mA @ 120 Hz | 34.5 mA @ 120 Hz | 46.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 690 mA @ 100 kHz | 690 mA @ 100 kHz | 930 mA @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | - | 0.138" (3.50mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.472" (12.00mm) |
| Surface Mount Land Size | - | 0.406" L x 0.406" W (10.30mm x 10.30mm) | - |
| Mounting Type | Through Hole | Surface Mount | Through Hole |
| Package / Case | Radial, Can | Radial, Can - SMD | Radial, Can |
