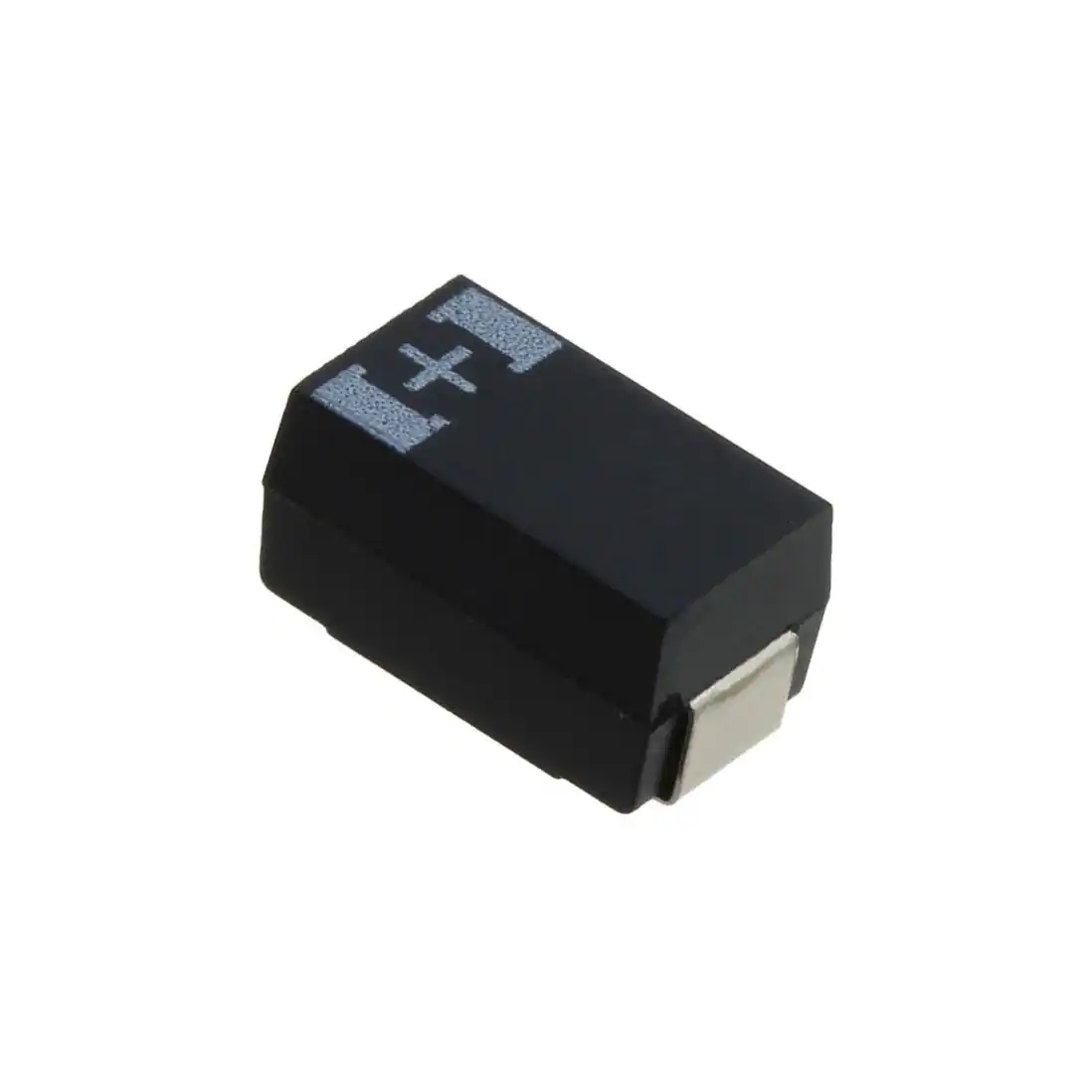

| Part Number | 4TPF330MFL | 4TPF330ML | 4TPF330M9L |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 330 µF | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 4 V | 4 V | 4 V |
| Type | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 15mOhm @ 100kHz | 12mOhm @ 100kHz | 9mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | D3L | D3L | D3L |
| Ratings | - | - | - |
| Features | - | General Purpose | - |
