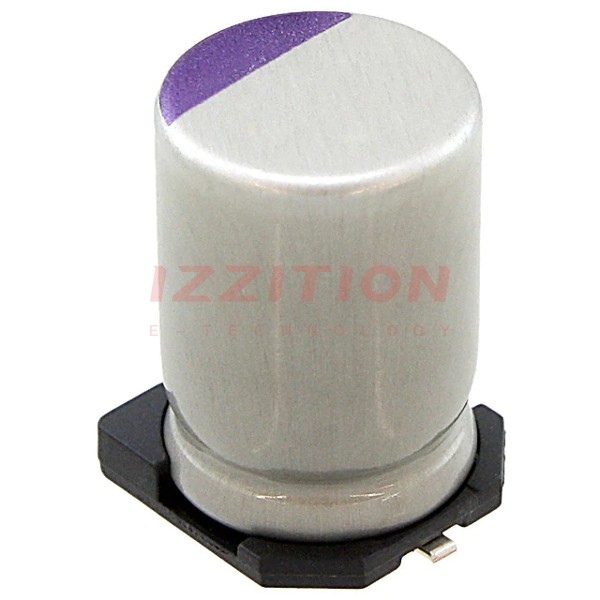

| Part Number | 4SVP560M | 4SVPT560M | 4SVPC560M | 4SVT560M | 4SEP560M |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Type | Polymer | Polymer | Polymer | Polymer | Polymer |
| Capacitance | 560 µF | 560 µF | 560 µF | 560 µF | 560 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 4 V | 4 V | 4 V | 4 V | 4 V |
| ESR (Equivalent Series Resistance) | 13mOhm | 22mOhm | 22mOhm | 22mOhm | 13mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 20000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 125°C | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 105°C |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Features | - | - | - | - | - |
| Ripple Current @ Low Frequency | 226 mA @ 120 Hz | 161 mA @ 120 Hz | 161 mA @ 120 Hz | 161 mA @ 120 Hz | 226 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4.52 A @ 100 kHz | 3.22 A @ 100 kHz | 3.22 A @ 100 kHz | 3.22 A @ 100 kHz | 4.52 A @ 100 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | - | - | - | - | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.472" (12.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can |
