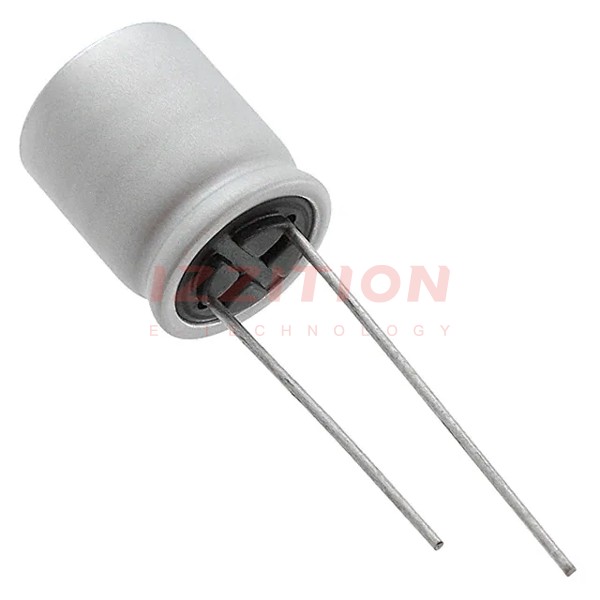

| Part Number | 4SEP1200M | 4SEQP1200M | 4SVP1200M | 4SEP100M |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Type | Polymer | Polymer | Polymer | Polymer |
| Capacitance | 1200 µF | 1200 µF | 1200 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 4 V | 4 V | 4 V | 4 V |
| ESR (Equivalent Series Resistance) | 12mOhm | 12mOhm | 12mOhm | 40mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 1000 Hrs @ 125°C | 2000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Features | - | - | - | - |
| Ripple Current @ Low Frequency | 272 mA @ 120 Hz | 272 mA @ 120 Hz | 272 mA @ 120 Hz | 90.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.44 A @ 100 kHz | 5.44 A @ 100 kHz | 5.44 A @ 100 kHz | 1.81 A @ 100 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | - | 0.098" (2.50mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.500" (12.70mm) | 0.236" (6.00mm) |
| Surface Mount Land Size | - | - | 0.406" L x 0.406" W (10.30mm x 10.30mm) | - |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can - SMD | Radial, Can |
