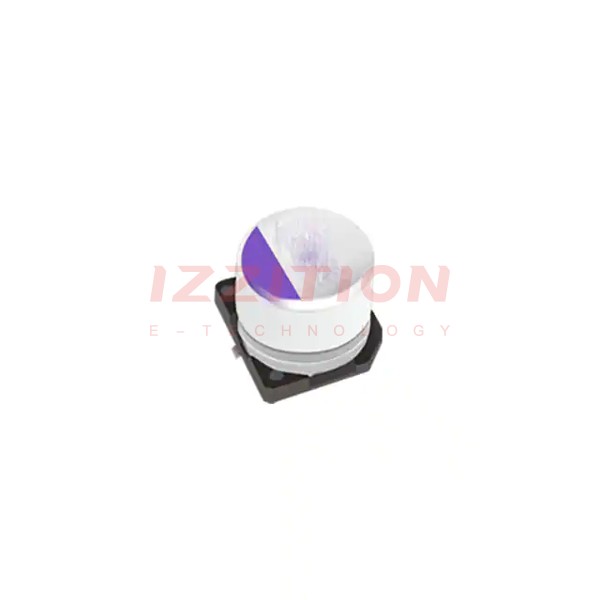

| Part Number | 35SVT120M | 35SVF120M | 35SVPT120M |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Type | Polymer | Polymer | Polymer |
| Capacitance | 120 µF | 120 µF | 120 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V | 35 V |
| ESR (Equivalent Series Resistance) | 18mOhm | 18mOhm | 18mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C | 1000 Hrs @ 125°C | 20000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 105°C |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Features | - | - | - |
| Ripple Current @ Low Frequency | 220 mA @ 120 Hz | 69.5 mA @ 120 Hz | 220 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4.4 A @ 100 kHz | 1.39 A @ 100 kHz | 4.4 A @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | - | - | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
