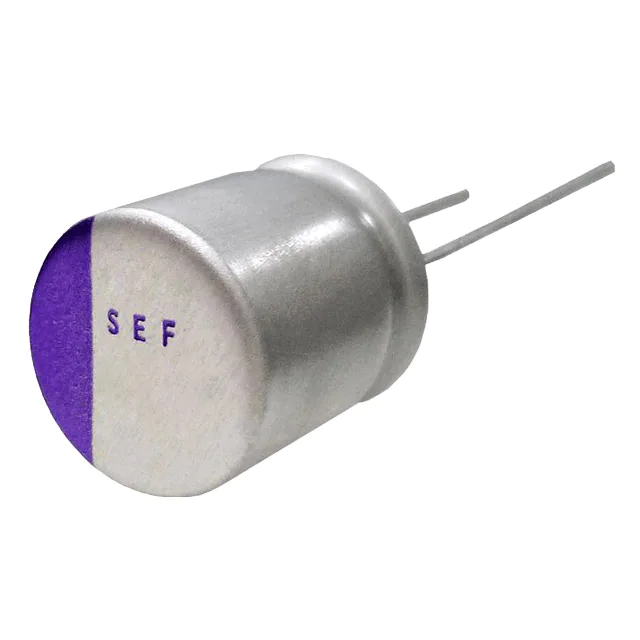

| Part Number | 32SEF68M | 32SEPF68M |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Type | Polymer | Polymer |
| Capacitance | 68 µF | 68 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 32 V | 32 V |
| ESR (Equivalent Series Resistance) | - | 25mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 105°C |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Features | - | - |
| Ripple Current @ Low Frequency | - | 160 mA @ 120 Hz |
| Ripple Current @ High Frequency | - | 3.2 A @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | - | 0.138" (3.50mm) |
| Size / Dimension | - | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | - | 0.276" (7.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
