2SK3318
  • Share:

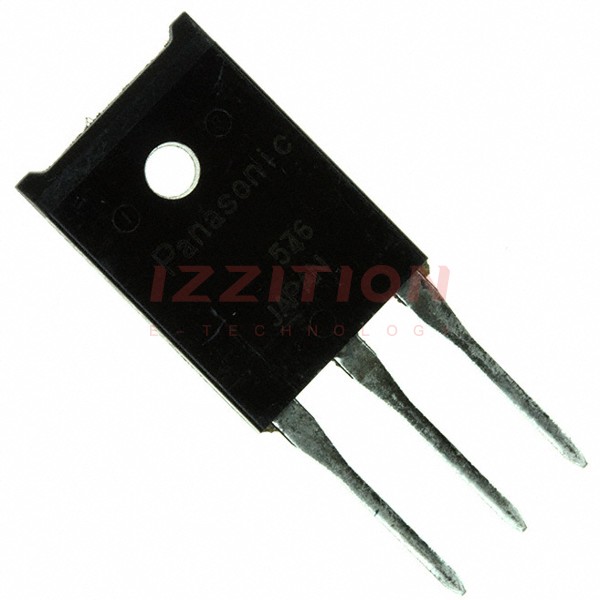

Panasonic Electronic Components 2SK3318

Manufacturer No:
2SK3318
Manufacturer:
Panasonic Electronic Components
Package:
Bulk
Datasheet:
2SK3318 Datasheet
ECAD Model:
-
Description:
MOSFET N-CH 600V 15A TOP-3F-A1
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):600 V
Current - Continuous Drain (Id) @ 25°C:15A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:460mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id:4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:3500 pF @ 20 V
FET Feature:-
Power Dissipation (Max):3W (Ta), 100W (Tc)
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TOP-3F-A1
Package / Case:TOP-3F
0 Remaining View Similar

In Stock

-
295

Please send RFQ , we will respond immediately.
