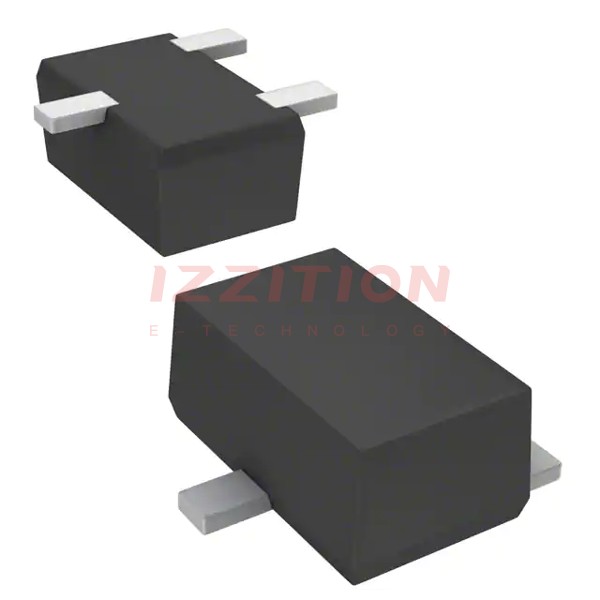

| Part Number | 2SK3064G0L | 2SK306400L |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) | 100mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V | 5V |
| Rds On (Max) @ Id, Vgs | 50Ohm @ 10mA, 5V | 50Ohm @ 10mA, 5V |
| Vgs(th) (Max) @ Id | 2V @ 1µA | 2V @ 1µA |
| Gate Charge (Qg) (Max) @ Vgs | - | - |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - | - |
| FET Feature | - | - |
| Power Dissipation (Max) | 150mW (Ta) | 150mW (Ta) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | SMini3-F2 | SMini3-G1 |
| Package / Case | SC-85 | SC-70, SOT-323 |
