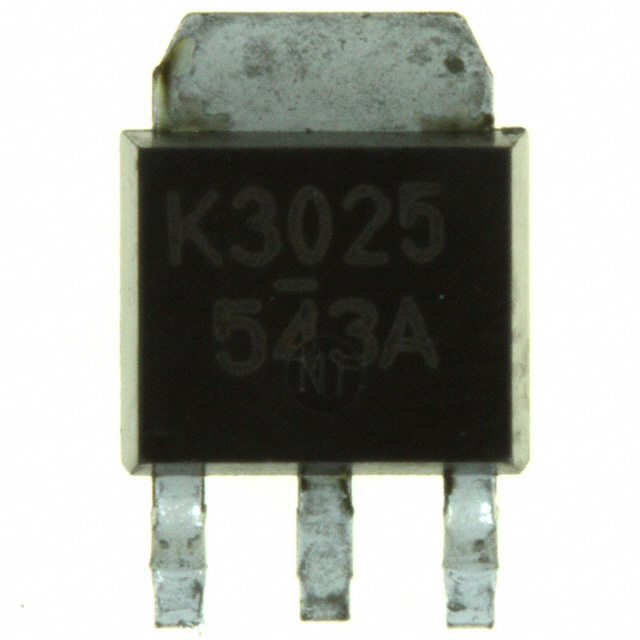

| Part Number | 2SK302500L | 2SK302200L |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) | 5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 40mOhm @ 15A, 10V | 130mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - | - |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1200 pF @ 10 V | 220 pF @ 10 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 1W (Ta), 25W (Tc) | 1W (Ta), 10W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | U-DL | U-G2 |
| Package / Case | TO-252-4, DPak (3 Leads + Tab) | TO-252-3, DPak (2 Leads + Tab), SC-63 |
