Panasonic Electronic Components-2SD245300L - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	2SD245300L	2SD241300L
Manufacturer	Panasonic Electronic Components	Panasonic Electronic Components
Product Status	Obsolete	Obsolete
Transistor Type	NPN	NPN
Current - Collector (Ic) (Max)	2 A	100 mA
Voltage - Collector Emitter Breakdown (Max)	60 V	400 V
Vce Saturation (Max) @ Ib, Ic	1V @ 50mA, 2A	1.5V @ 5mA, 50mA
Current - Collector Cutoff (Max)	100µA	-
DC Current Gain (hFE) (Min) @ Ic, Vce	500 @ 500mA, 4V	30 @ 30mA, 5V
Power - Max	1 W	1 W
Frequency - Transition	50MHz	40MHz
Operating Temperature	150°C (TJ)	150°C (TJ)
Mounting Type	Surface Mount	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63	TO-243AA
Supplier Device Package	U-G2	MiniP3-F1

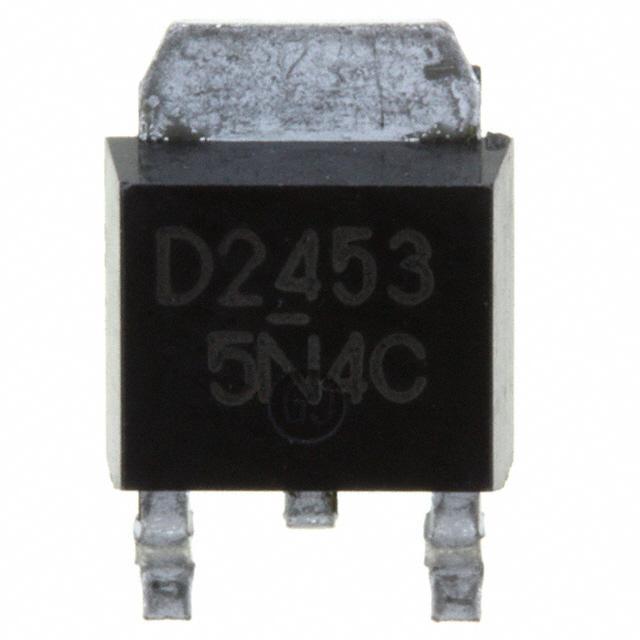

Panasonic Electronic Components 2SD245300L

Transistor Type:	NPN
Current - Collector (Ic) (Max):	2 A
Voltage - Collector Emitter Breakdown (Max):	60 V
Vce Saturation (Max) @ Ib, Ic:	1V @ 50mA, 2A
Current - Collector Cutoff (Max):	100µA
DC Current Gain (hFE) (Min) @ Ic, Vce:	500 @ 500mA, 4V
Power - Max:	1 W
Frequency - Transition:	50MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:	U-G2
