2SD22580RA
  • Share:

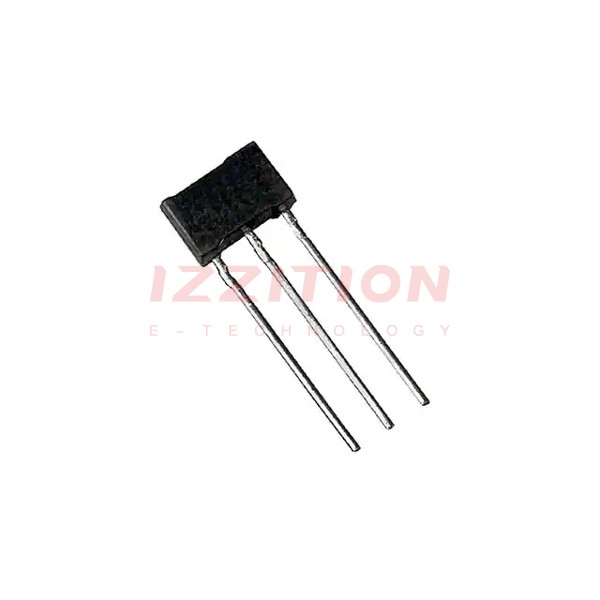

Panasonic Electronic Components 2SD22580RA

Manufacturer No:
2SD22580RA
Manufacturer:
Panasonic Electronic Components
Package:
Cut Tape (CT)
Datasheet:
2SD22580RA Datasheet
ECAD Model:
-
Description:
TRANS NPN DARL 50V 1A MT-2
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Transistor Type:NPN - Darlington
Current - Collector (Ic) (Max):1 A
Voltage - Collector Emitter Breakdown (Max):50 V
Vce Saturation (Max) @ Ib, Ic:1.8V @ 1mA, 1A
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:8000 @ 1A, 10V
Power - Max:1 W
Frequency - Transition:150MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:3-SIP
Supplier Device Package:MT-2-A1
0 Remaining View Similar

In Stock

-
473

Please send RFQ , we will respond immediately.
