2SD22420PA
  • Share:

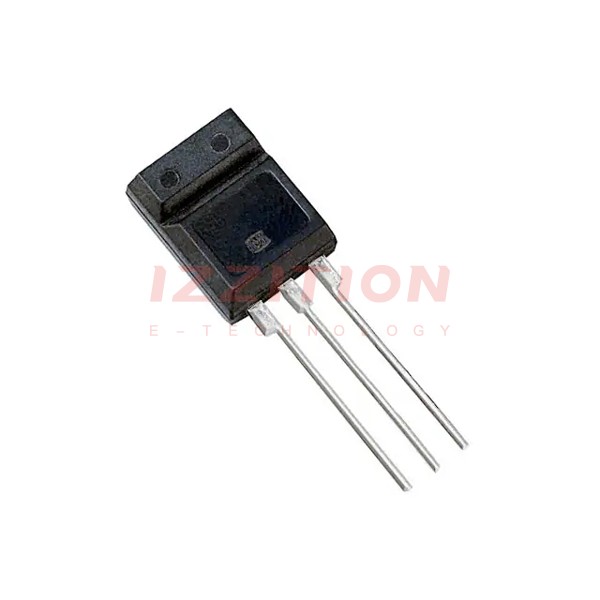

Panasonic Electronic Components 2SD22420PA

Manufacturer No:
2SD22420PA
Manufacturer:
Panasonic Electronic Components
Package:
Cut Tape (CT)
Datasheet:
2SD22420PA Datasheet
ECAD Model:
-
Description:
TRANS NPN DARL 60V 4A MT-4
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Transistor Type:NPN - Darlington
Current - Collector (Ic) (Max):4 A
Voltage - Collector Emitter Breakdown (Max):60 V
Vce Saturation (Max) @ Ib, Ic:4V @ 20mA, 5A
Current - Collector Cutoff (Max):100µA
DC Current Gain (hFE) (Min) @ Ic, Vce:4000 @ 3A, 3V
Power - Max:2 W
Frequency - Transition:20MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:3-SIP
Supplier Device Package:MT-4-A1
0 Remaining View Similar

In Stock

-
153

Please send RFQ , we will respond immediately.
