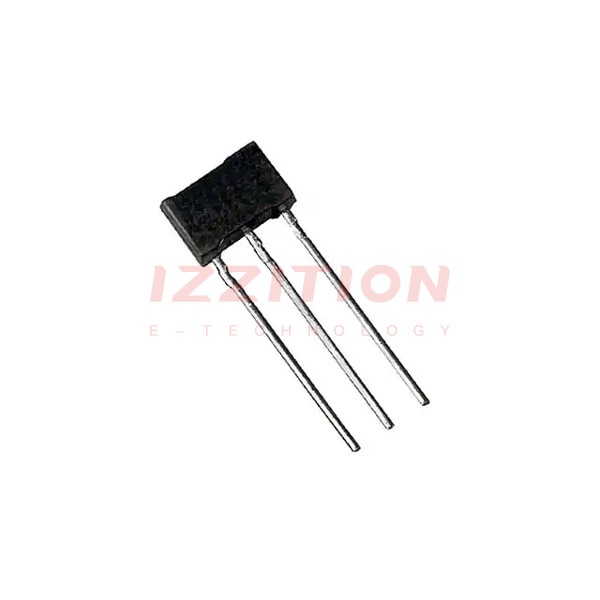

| Part Number | 2SD22250RA | 2SD22200RA |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Transistor Type | NPN | NPN - Darlington |
| Current - Collector (Ic) (Max) | 500 mA | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 120 V | 80 V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 30mA, 300mA | 1.8V @ 1mA, 1A |
| Current - Collector Cutoff (Max) | - | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 130 @ 150mA, 10V | 8000 @ 1A, 10V |
| Power - Max | 1 W | 1.5 W |
| Frequency - Transition | 200MHz | 150MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | 3-SIP | 3-SIP |
| Supplier Device Package | MT-2-A1 | MT-3-A1 |
