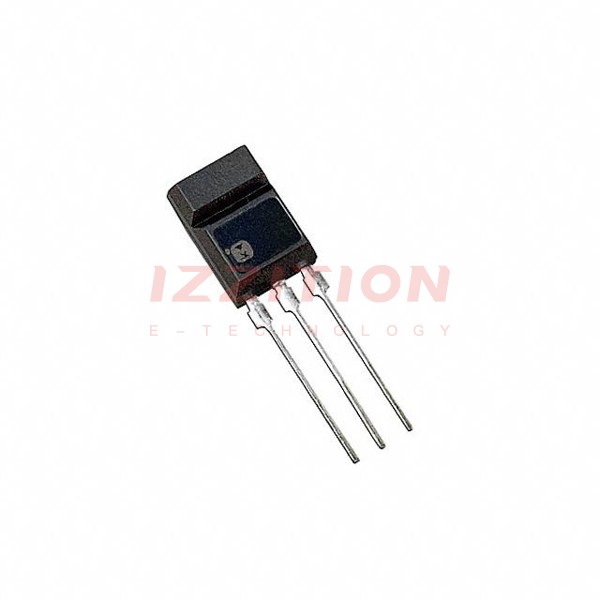

| Part Number | 2SD22200RA | 2SD22250RA |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Transistor Type | NPN - Darlington | NPN |
| Current - Collector (Ic) (Max) | 1 A | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 80 V | 120 V |
| Vce Saturation (Max) @ Ib, Ic | 1.8V @ 1mA, 1A | 1V @ 30mA, 300mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 8000 @ 1A, 10V | 130 @ 150mA, 10V |
| Power - Max | 1.5 W | 1 W |
| Frequency - Transition | 150MHz | 200MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | 3-SIP | 3-SIP |
| Supplier Device Package | MT-3-A1 | MT-2-A1 |
