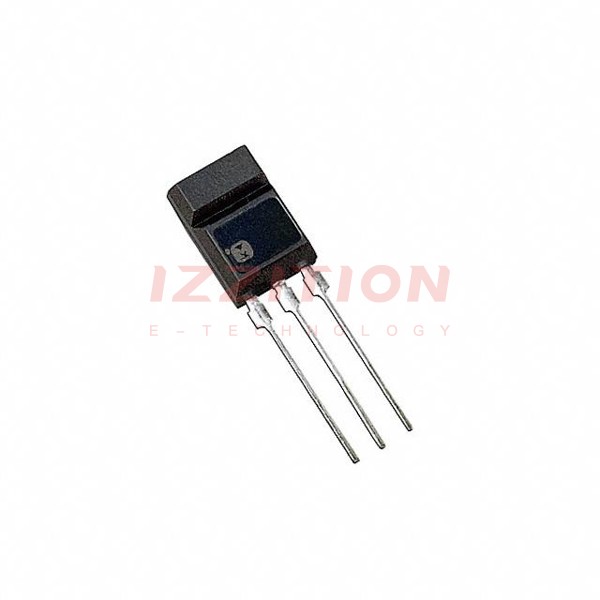

| Part Number | 2SD21340RA | 2SD21360RA | 2SD21840RA | 2SD21330RA |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 1 A | 3 A | 1 A | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 150 V | 60 V | 150 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 50mA, 500mA | 1.2V @ 375mA, 3A | 300mV @ 25mA, 500mA | 400mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | - | 300µA | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 130 @ 150mA, 10V | 120 @ 1A, 4V | 120 @ 100mA, 2V | 120 @ 500mA, 10V |
| Power - Max | 1.5 W | 1.5 W | 1 W | 1.5 W |
| Frequency - Transition | 200MHz | 220MHz | 90MHz | 200MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 3-SIP | 3-SIP | 3-SIP | 3-SIP |
| Supplier Device Package | MT-3-A1 | MT-3-A1 | MT-2-A1 | MT-3-A1 |
