2SD20640S
  • Share:

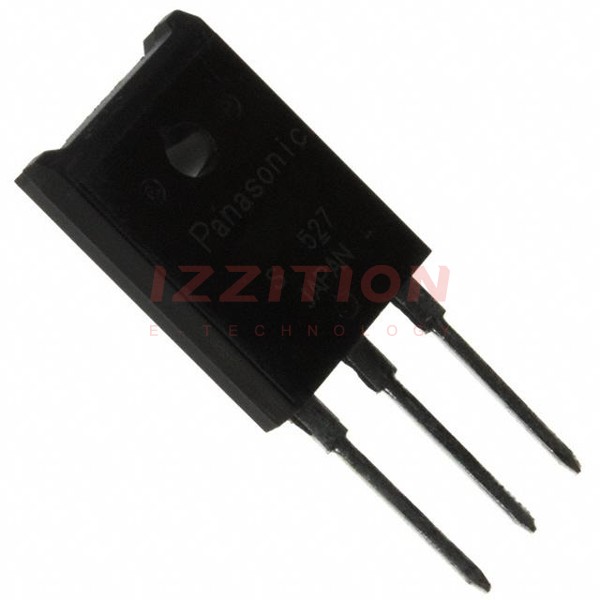

Panasonic Electronic Components 2SD20640S

Manufacturer No:
2SD20640S
Manufacturer:
Panasonic Electronic Components
Package:
Bulk
Datasheet:
2SD20640S Datasheet
ECAD Model:
-
Description:
TRANS NPN 120V 6A TOP-3F
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):6 A
Voltage - Collector Emitter Breakdown (Max):120 V
Vce Saturation (Max) @ Ib, Ic:2V @ 400mA, 4A
Current - Collector Cutoff (Max):50µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:80 @ 1A, 5V
Power - Max:3 W
Frequency - Transition:20MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TOP-3F
Supplier Device Package:TOP-3F-A1
0 Remaining View Similar

In Stock

-
80

Please send RFQ , we will respond immediately.
