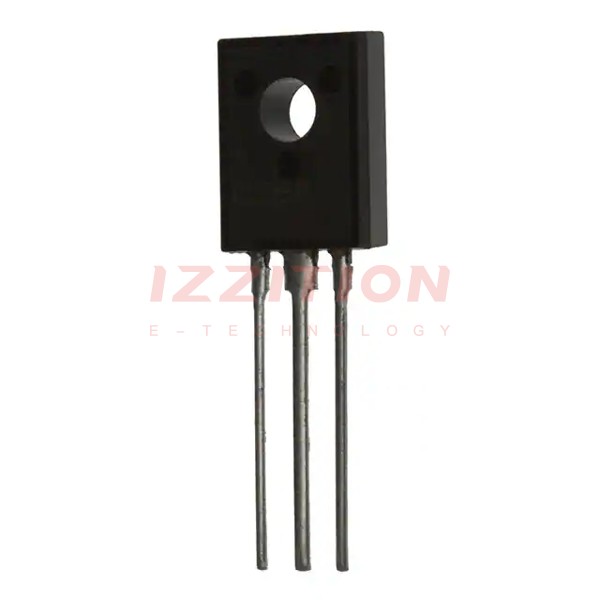

| Part Number | 2SD2018 | 2SD2012 | 2SD2014 | 2SD2015 | 2SD2016 | 2SD2017 |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | STMicroelectronics | Sanken | Sanken | Sanken | Sanken |
| Product Status | Obsolete | Obsolete | Active | Active | Active | Active |
| Transistor Type | NPN - Darlington | NPN | NPN - Darlington | NPN - Darlington | NPN - Darlington | NPN - Darlington |
| Current - Collector (Ic) (Max) | 1 A | 3 A | 4 A | 4 A | 3 A | 6 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V | 60 V | 80 V | 120 V | 200 V | 250 V |
| Vce Saturation (Max) @ Ib, Ic | 1.8V @ 1mA, 1A | 1V @ 200mA, 2A | 1.5V @ 3mA, 3A | 1.5V @ 2mA, 2A | 1.5V @ 1.5mA, 1A | 1.5V @ 2mA, 2A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) | 100µA (ICBO) | 10µA (ICBO) | 10µA (ICBO) | 10µA (ICBO) | 100µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 6500 @ 1A, 10V | 100 @ 500mA, 5V | 2000 @ 3A, 2V | 2000 @ 2A, 2V | 1000 @ 1A, 4V | 2000 @ 2A, 2V |
| Power - Max | 5 W | 25 W | 25 W | 25 W | 25 W | 35 W |
| Frequency - Transition | - | 3MHz | 75MHz | 40MHz | 90MHz | 20MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-225AA, TO-126-3 | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
| Supplier Device Package | TO-126B-A1 | TO-220F | TO-220F | TO-220F | TO-220F | TO-220F |
