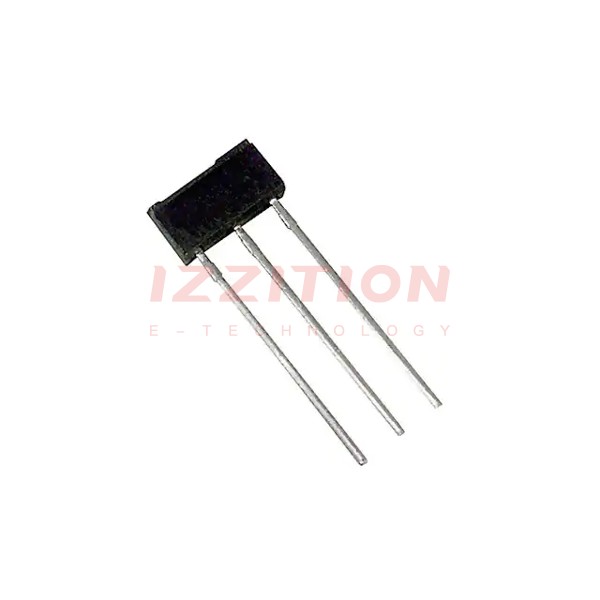

| Part Number | 2SD19960TA | 2SD19960RA | 2SD19960SA |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 500 mA | 500 mA | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 20 V | 20 V | 20 V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 20mA, 500mA | 400mV @ 20mA, 500mA | 400mV @ 20mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 400 @ 500mA, 2V | 200 @ 500mA, 2V | 300 @ 500mA, 2V |
| Power - Max | 600 mW | 600 mW | 600 mW |
| Frequency - Transition | 200MHz | 200MHz | 200MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | 3-SIP | 3-SIP | 3-SIP |
| Supplier Device Package | MT-1-A1 | MT-1-A1 | MT-1-A1 |
