Panasonic Electronic Components-2SD16450R - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	2SD16450R	2SD16400R
Manufacturer	Panasonic Electronic Components	Panasonic Electronic Components
Product Status	Obsolete	Obsolete
Transistor Type	NPN - Darlington	NPN - Darlington
Current - Collector (Ic) (Max)	1 A	2 A
Voltage - Collector Emitter Breakdown (Max)	60 V	100 V
Vce Saturation (Max) @ Ib, Ic	1.8V @ 1mA, 1A	1.5V @ 1mA, 1A
Current - Collector Cutoff (Max)	1µA (ICBO)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	8000 @ 1A, 10V	8000 @ 1A, 10V
Power - Max	5 W	1.2 W
Frequency - Transition	150MHz	-
Operating Temperature	150°C (TJ)	150°C (TJ)
Mounting Type	Through Hole	Through Hole
Package / Case	TO-225AA, TO-126-3	TO-225AA, TO-126-3
Supplier Device Package	TO-126B-A1	TO-126B-A1

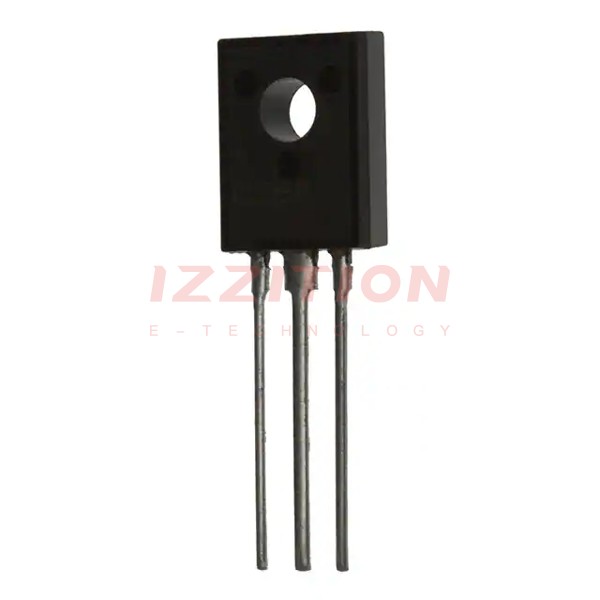

Panasonic Electronic Components 2SD16450R

Transistor Type:	NPN - Darlington
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	60 V
Vce Saturation (Max) @ Ib, Ic:	1.8V @ 1mA, 1A
Current - Collector Cutoff (Max):	1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	8000 @ 1A, 10V
Power - Max:	5 W
Frequency - Transition:	150MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-225AA, TO-126-3
Supplier Device Package:	TO-126B-A1
