Panasonic Electronic Components-2SD16400Q - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	2SD16400Q	2SD16400R
Manufacturer	Panasonic Electronic Components	Panasonic Electronic Components
Product Status	Obsolete	Obsolete
Transistor Type	NPN - Darlington	NPN - Darlington
Current - Collector (Ic) (Max)	2 A	2 A
Voltage - Collector Emitter Breakdown (Max)	100 V	100 V
Vce Saturation (Max) @ Ib, Ic	1.5V @ 1mA, 1A	1.5V @ 1mA, 1A
Current - Collector Cutoff (Max)	100nA (ICBO)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	4000 @ 1A, 10V	8000 @ 1A, 10V
Power - Max	1.2 W	1.2 W
Frequency - Transition	-	-
Operating Temperature	150°C (TJ)	150°C (TJ)
Mounting Type	Through Hole	Through Hole
Package / Case	TO-225AA, TO-126-3	TO-225AA, TO-126-3
Supplier Device Package	TO-126B-A1	TO-126B-A1

Transistor Type:	NPN - Darlington
Current - Collector (Ic) (Max):	2 A
Voltage - Collector Emitter Breakdown (Max):	100 V
Vce Saturation (Max) @ Ib, Ic:	1.5V @ 1mA, 1A
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	4000 @ 1A, 10V
Power - Max:	1.2 W
Frequency - Transition:	-
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-225AA, TO-126-3
Supplier Device Package:	TO-126B-A1

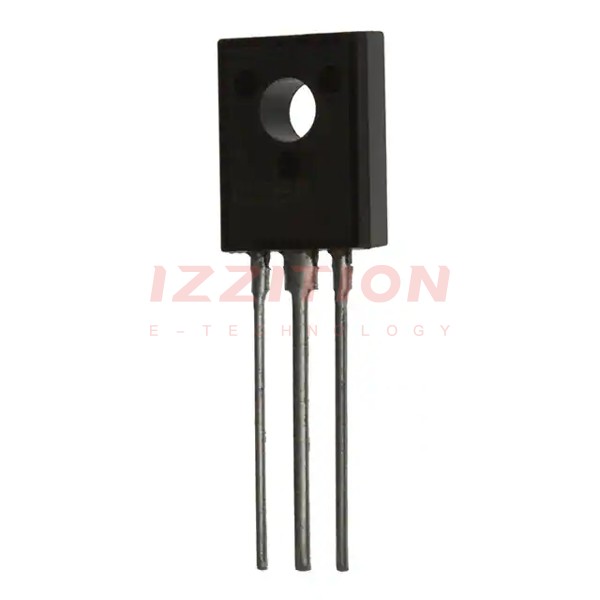

Panasonic Electronic Components 2SD16400Q
