2SC4960
  • Share:

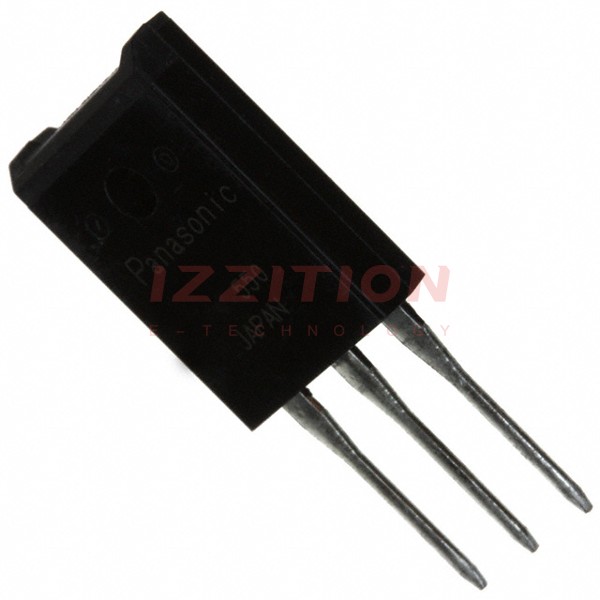

Panasonic Electronic Components 2SC4960

Manufacturer No:
2SC4960
Manufacturer:
Panasonic Electronic Components
Package:
Bulk
Datasheet:
2SC4960 Datasheet
ECAD Model:
-
Description:
TRANS NPN 800V 1A TOP-3F
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):1 A
Voltage - Collector Emitter Breakdown (Max):800 V
Vce Saturation (Max) @ Ib, Ic:1.5V @ 40mA, 200mA
Current - Collector Cutoff (Max):50µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:3 @ 500mA, 5V
Power - Max:3 W
Frequency - Transition:4MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TOP-3F
Supplier Device Package:TOP-3F-A1
0 Remaining View Similar

In Stock

-
272

Please send RFQ , we will respond immediately.
